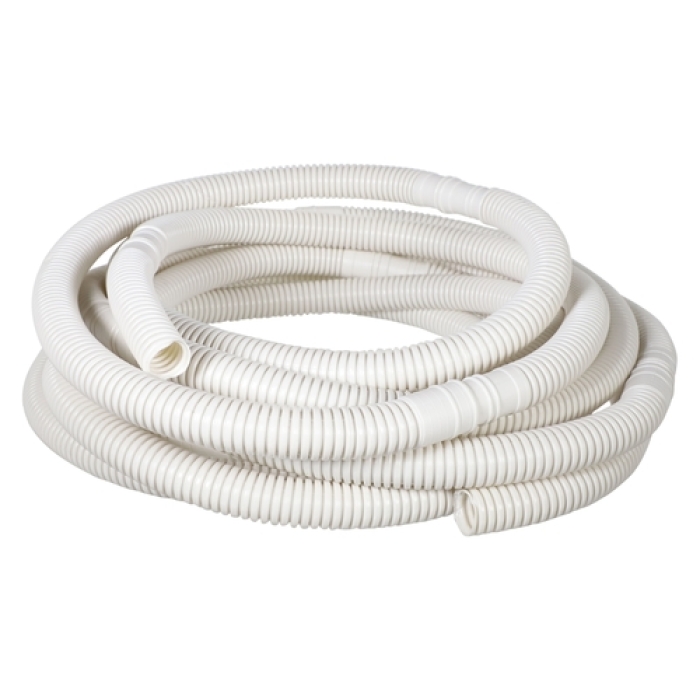

Asurity™ 230-DL16-2 Mini-Split Drain Line, 5/8 in ID, 20 ft L, Polyethylene, White, Use With: Ductless Systems
Asurity™ 230-DL16-2 Mini-Split Drain Line, 5/8 in ID, 20 ft L, Polyethylene, White, Use With: Ductless Systems

Asurity™ 230-DL16-2 Mini-Split Drain Line, 5/8 in ID, 20 ft L, Polyethylene, White, Use With: Ductless Systems

Asurity™ 230-DL16-2 Mini-Split Drain Line, 5/8 in ID, 20 ft L, Polyethylene, White, Use With: Ductless Systems

Manufacturer: DiversiTech Corporation
Brand: Asurity™
Part #: 295288
MPN: 230-DL16-2
CPN:
Color      :      White
For Use With      :      Ductless Systems
Function Type      :      Drain Line
Inside Diameter      :      5/8 in
Length      :      20 ft
Material      :      Polyethylene
Operating Temperature Rating      :      32 to 122 deg F
Package Quantity      :      1 Pack
Packaged Depth      :      15 in
Packaged Height      :      4 in
Packaged Width      :      12 in
Product Type      :      Drain Line
Shipping Weight      :      0.5 lb

The Asurity® 230-DL16-20 is a 5/8 inch (16 mm) diameter, non-kinking drain line used for mini-split installations. For drainage of air conditioning condensation water (without pressure). These are non-insulated condensate drain hoses for ductless applications. We recommend installing the ductless drain line inside of a lineset cover.

Asurity™ Mini-Split Drain Line, 5/8 in Inside Diameter, 20 ft Length, Polyethylene, White, For Use With: Ductless Systems, 32 to 122 deg F Operating Temperature

  • Connects to 16mm, 18mm and 20mm diameter air conditioning condensation outlet adapters
  • Cut marks every 3.28 feet
  • Made of UV Stabilized Low Density Polyethylene
  • Flex joint slides right into the end of the SpeediChannel™ with no additional joiner piece required
  • Specification Sheet https://www.clsupplyhvac.com//ASSETS/DOCUMENTS/ITEMS/EN/Asurity_230_DL16_Specification_Sheet.pdf
