| Amperage Rating | : | 1.5 A |
| Contact Configuration | : | NC, SPST |
| Control Voltage | : | 24 V |
| Electrical Connection Type | : | 2-Wire |
| Function Type | : | Float Switch |
| Installation / Mounting Type | : | Pan |
| Package Quantity | : | 50 Pack |
| Packaged Depth | : | 8.23 in |
| Packaged Height | : | 1.97 in |
| Packaged Width | : | 3.5 in |
| Product Type | : | Float Switch |
| Shipping Weight | : | 0.14 lb |

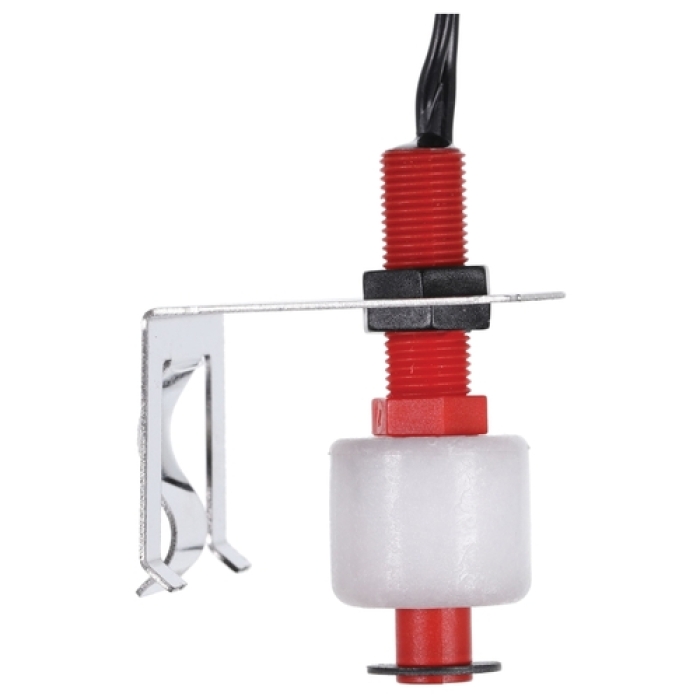

The Asurity® CS-3-BULK50 is packaged with 50 CS-3 Drain Pan Clip Switches, designed for high volume installs, saving time and money. It is easy to install anywhere on the drain pan. After clipping the CS-3 anywhere along the drain pan wall, the stainless steel clip adapts to multiple pan thicknesses. Uses a magnetic red switch for condensate overflow protection. For standard rated installations in primary or secondary drain pans.
Asurity™ Drain Pan Clip Float Switch, 24 V Control, Contact Configuration: NC, SPST, Pan Installation / Mounting, 1.5 A, 2-Wire Electrical Connection
- For Standard Rated installations in Primary or Secondary drain pans
- Adjustable activation height
- Position anywhere along the drain pan
- Built-in protection against power surges provides increased reliability
- This switch is Plenum rated
