| Color | : | Silver |
| Jacket Material | : | Fiberglass |
| Length | : | 25 ft |
| Material | : | Metalized Polyester |
| Maximum Working Pressure | : | 10 in-WG Positive, 3/4 in-WG Negative |
| Operating Temperature Rating | : | -20 to 250 deg F |
| Outside Diameter | : | 12 in |
| Product Family | : | 030 Series |
| Product Type | : | Sleeve |
| R-Value | : | R8 |

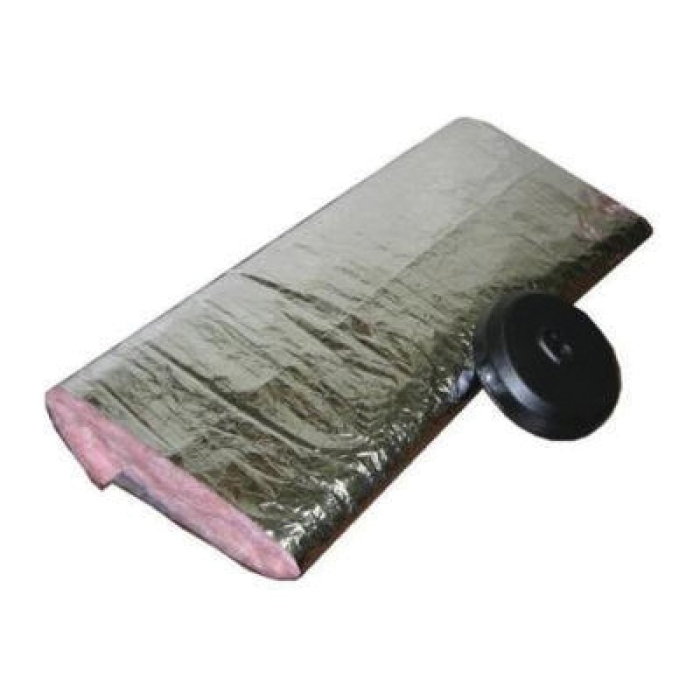

ATCO's UPC#010 insulation sleeve is constructed of a thick fiberglass insulation blanket sheathed in a reinforced metalized polyester vapor barrier jacket and supplied in 5' lengths, with an extra two inches of jacket length for overlap. A starter cap is included in each carton.
Atco Reinforced Duct Sleeve, Product Family: 030 Series, 25 ft Length, R-Value: R8, Fiberglass Jacket, Silver, 10 in-WG Positive, 3/4 in-WG Negative Maximum Working Pressure, Metalized Polyester, 12 in Outside Diameter, -20 to 250 deg F Operating Temperature
- Thick fiberglass insulation for excellent thermal efficiency
- Reinforced metalized vapor barrier jacket
- 5 ft sections eliminate in-shop and jobsite cutting
- Easy installation
- Lower energy bills
- Reduced labor cost as compared to duct wrap application
- 0.05 perm vapor transmission
- Surface burning characteristics flame spread not exceeding 25, smoke developed not exceeding 50
- Designed to slip over standard sheet metal pipe and provide a fast economical job site installation
