| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Rating | : | 48,000 BTU/h |
| Coil Casing | : | Cased |
| Coil Material | : | Aluminum Fin~Aluminum Tube |
| Depth | : | 21 in |
| Drain Pan Material | : | Plastic |
| Height | : | 30 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | BMAC |
| Product Family | : | BMAC Series |
| Product Weight | : | 74.3 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 97.8 lbs |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Width | : | 21 in |

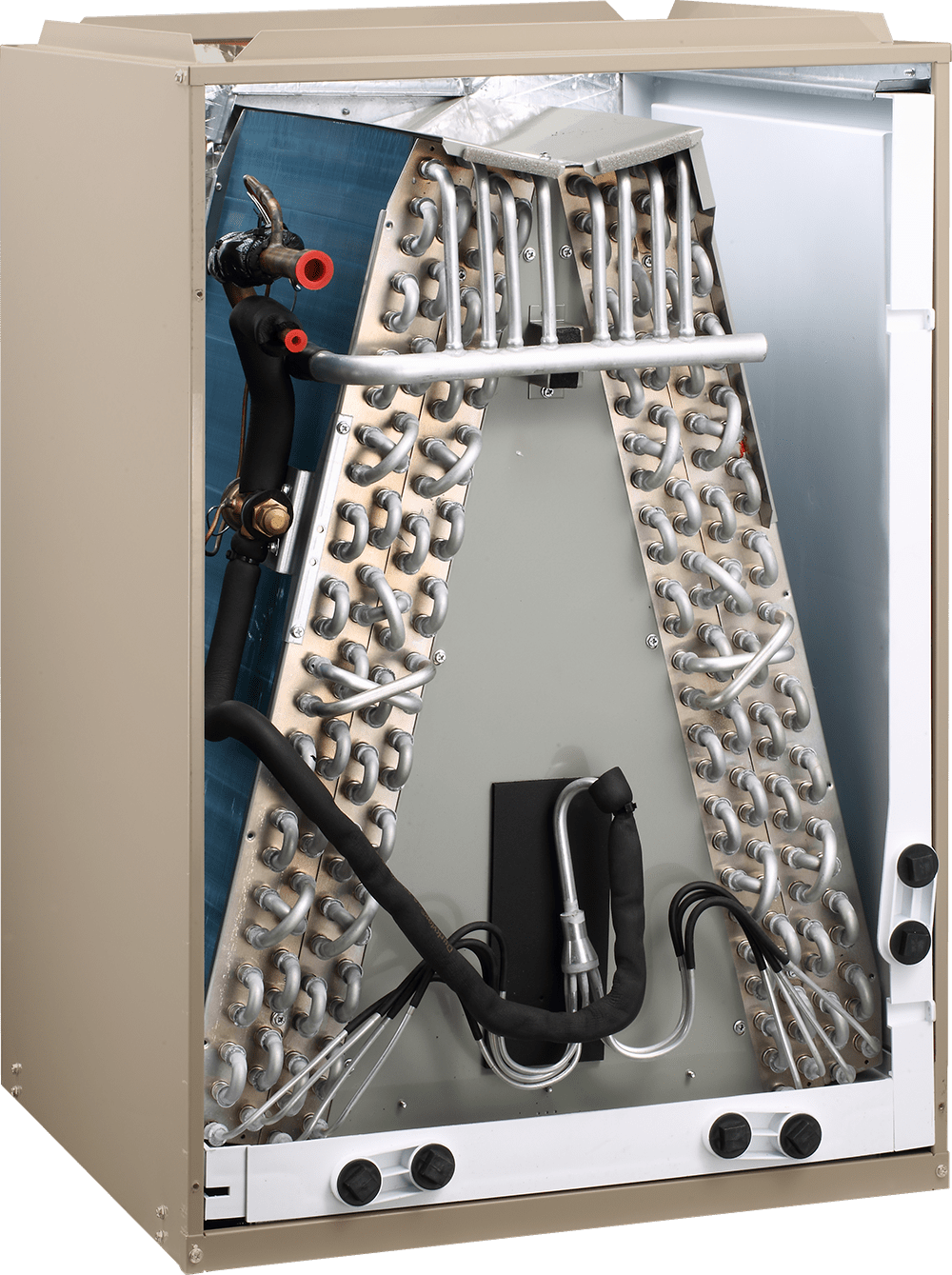

The Bosch BMAC Series is a versatile cased A-coil designed for residential systems. Its multi-position configuration supports upflow, downflow, and horizontal orientations, providing excellent flexibility for both new construction and retrofit furnace applications.This 21-inch wide coil is engineered to pair seamlessly with Bosch equipment, including the BOVA 2.0 heat pump condensing section and BGH96 series furnaces. For furnace installations, the coil must be installed downstream in the air outlet to ensure proper system performance.
