| BTU Cooling Rating | : | 36,000 BTU/h |
| BTU Heating Rating | : | 36,000 BTU/h |
| Compressor Type | : | Rotary |
| Defrost Type | : | Demand / Sensor-Based |
| Depth | : | 28 in |
| EER (Custom) | : | 10.0~11.0~12.0 |
| EER2 Range | : | 8.5-11.8 |
| EER2 | : | 8.0~9.0~10.0~11.0 |
| EER | : | 10.0-12.5 |
| Energy Star Certified | : | Yes |
| HSPF (Custom) | : | 8.0~9.0 |
| HSPF2 Range | : | 7.5-9.0 |
| HSPF2 | : | 7.0~8.0~9.0 |
| HSPF | : | 8.5-9.5 |
| Height | : | 24.938 in |
| Liquid Line Size | : | 3/8/2025 in |
| Max Breaker Size | : | 45 A |
| Minimum Circuit Ampacity (MCA) | : | 26.7 A |
| Model Number | : | BOVA-15 |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 29 in |
| Packaged Height | : | 31.38 in |
| Packaged Width | : | 29 in |
| Phase | : | 1 ph |
| Product Family | : | IDS Light |
| Product Weight | : | 134 lbs |
| Refrigerant Type | : | R-410A |
| SEER (Custom) | : | 15.0~16.0~17.0 |
| SEER2 Range | : | 14.5-16.1 |
| SEER2 | : | 14.0~15.0~16.0 |
| SEER | : | 15.0-17.1 |
| Shipping Weight | : | 162 lbs |
| Sound Level | : | 78 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 28 in |

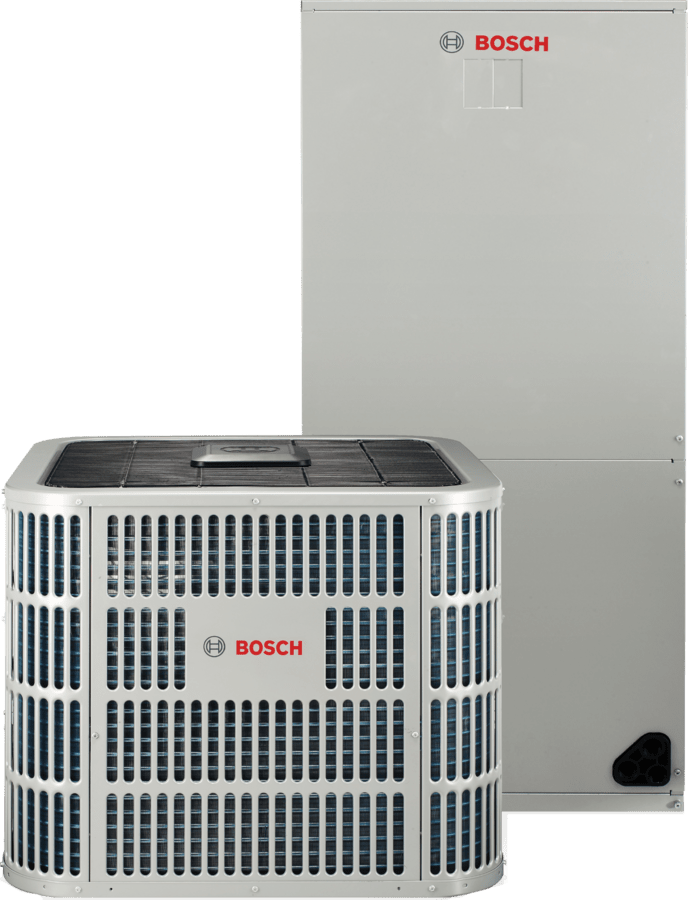

This Bosch IDS Light inverter heat pump provides highly efficient and reliable performance for residential applications. Its variable-speed compressor intelligently adjusts to match heating and cooling demand, delivering consistent comfort while minimizing energy consumption. As an ENERGY STAR certified unit, it meets stringent efficiency standards for year-round savings.Built for durability, the unit features a weather-resistant cabinet and a corrosion-resistant outdoor coil to ensure a long service life. Integrated electronic and mechanical protection systems continuously monitor operation to safeguard critical components, providing technicians and homeowners with peace of mind.
- Variable-Speed Inverter: Features an inverter-driven rotary compressor that modulates capacity from 33% to 110% for precise temperature control and efficiency.
- Enhanced Durability: Built with an outdoor coil capable of withstanding a 1000-hour salt spray test and a cabinet featuring a baked-on powder paint finish.
- System Protection: Integrates multiple safeguards, including high and low pressure switches and compressor temperature protection, to ensure long-term reliability.
- Quiet Operation: A standard compressor sound blanket helps to significantly reduce operating noise for minimal disruption.
- Reliable Lubrication: Utilizes intelligent oil return technology to ensure the compressor is properly lubricated, extending the life of the system.
- Standard Crankcase Heater: Includes a factory-installed crankcase heater to improve compressor startup in colder weather conditions.
