| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 60,000 BTU/h |
| BTU Cooling Rating | : | 60,000 BTU/h |
| CFM Airflow (Custom) | : | 1,000~1,100~1,200~1,300~1,400~1,500~1,600~1,700~1,800~1,900 CFM |
| CFM Airflow | : | 1,000 CFM~1,100 CFM~1,200 CFM~1,300 CFM~1,400 CFM~1,500 CFM~1,600 CFM~1,700 CFM~1,800 CFM |
| Depth | : | 24 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 22 in |
| Height | : | 54.5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | BVA |
| Motor Type | : | Constant Torque ECM |
| Number of Speeds | : | 5 |
| Packaged Depth | : | 27.688 in |
| Packaged Height | : | 60.625 in |
| Packaged Width | : | 24.688 in |
| Phase | : | 1 ph |
| Product Family | : | BVA Series |
| Product Weight | : | 161 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 194 lbs |
| Sound Level | : | 68 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 22 in |

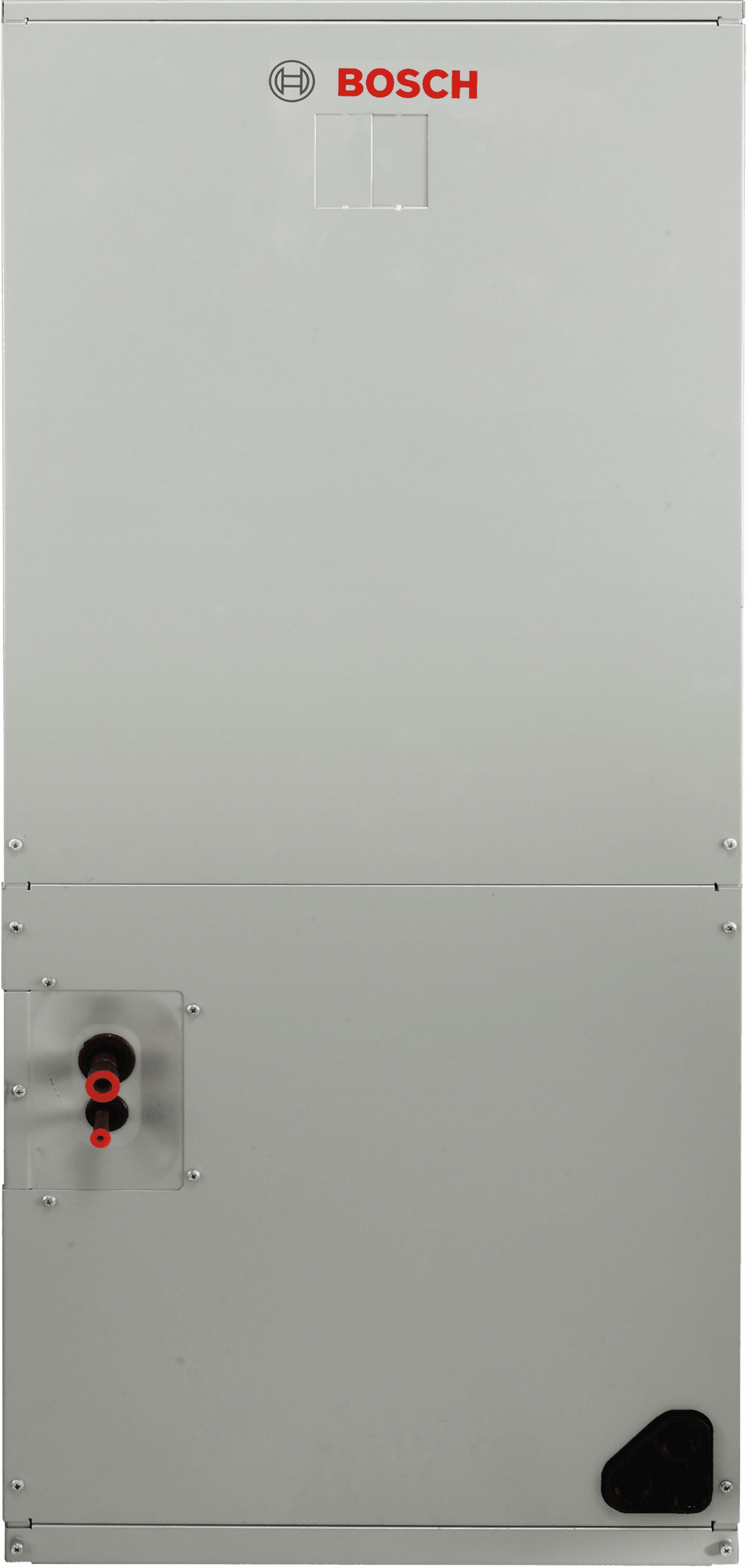

The Bosch BVA Series 5.0-ton air handler offers a versatile and high-performing core for residential split systems. It is engineered for flexible application, with a multi-position cabinet that accommodates upflow, downflow, and horizontal installations, suiting both new construction and system replacements.Built for efficiency and serviceability, the unit features a fully insulated, low-leakage cabinet and provides easy access to internal components for maintenance. It is compatible with most standard 24 VAC heat pump thermostats and offers options for supplemental electric heat kits.
- ECM Blower Motor:Equipped with a constant torque, multi-speed ECM motor to ensure efficient and consistent airflow.
- Corrosion-Resistant Coil:Features an all-aluminum evaporator coil for enhanced durability and resistance to corrosion.
- Installation Flexibility:Can be installed in multiple positions, including upflow, downflow, and horizontal (left or right), to fit various applications.
- Service-Friendly Design:Includes a slide-out blower and coil assembly, dual front panels, and a tool-less filter access door for simplified maintenance.
- Factory-Installed TXV:Comes with a factory-installed thermal expansion valve (TXV) for precise refrigerant control.
- Durable Cabinet:Built with a fully-insulated, factory-sealed cabinet that achieves an air leakage rate of 2% or less for improved thermal performance.
