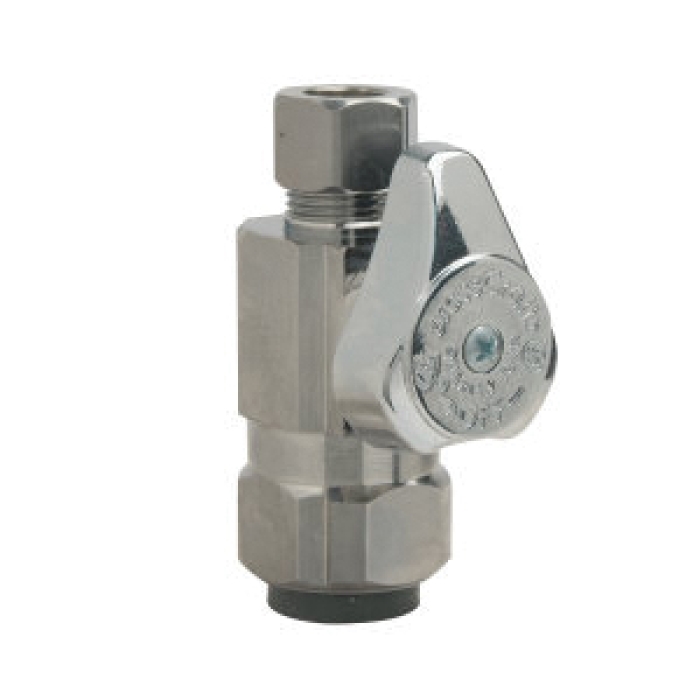

BrassCraft® G2PS14X C Straight Stop, 1/2 in Inlet, Push-to-Connect Inlet, 3/8 in Outlet, OD Compression Outlet
BrassCraft® G2PS14X C Straight Stop, 1/2 in Inlet, Push-to-Connect Inlet, 3/8 in Outlet, OD Compression Outlet
| Body Material | : | Brass |
| Finish | : | Chrome-Plated |
| Function Type | : | Stop |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | Push-to-Connect |
| Maximum Working Pressure | : | 125 psi |
| NSF Specifications | : | Yes |
| Operating Temperature Rating | : | 40 to 160 deg F |
| Outlet Connection Size | : | 3/8 in |
| Outlet Connection Type | : | OD Compression |
| Product Family | : | G2PS14 Series |
| Valve Type | : | Straight |
BrassCraft 1/2 in. Nominal Push Connect Inlet x 3/8 in. OD Compression Outlet 1/4-Turn Straight Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90 degree turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home. *Products shown may differ from those available in the Canadian market.
BrassCraft® Straight Stop, 1/2 in Inlet, Push-to-Connect Inlet, 3/8 in Outlet, OD Compression Outlet, Straight Valve, Brass Body, Chrome-Plated, 125 psi Max Working Pressure, 40 to 160 deg F Operating Temperature, NSF Specifications: Yes, Product Family: G2PS14 Series, Stop Function Type
- Machined one-piece brass body provides strength, durability and long-lasting performance
- 1/2 in. Nom Push Connect Inlet x 3/8 in. OD Comp Outlet
- Compatible with copper, PEX and CPVC
- For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115 deg F. For those applications, use our KT™ series ball stops.
- One-piece shut-off mechanism provides smooth on-off operation
- Easy-to-remove handle protects against accidental operation during rough-ins
- Installation ready: requires no special tools, soldering or glue for a watertight seal
- Chrome and Brass finish
- 100% leak tested to ensure reliable, leak-free performance
- Designed, machined and assembled in the USA
