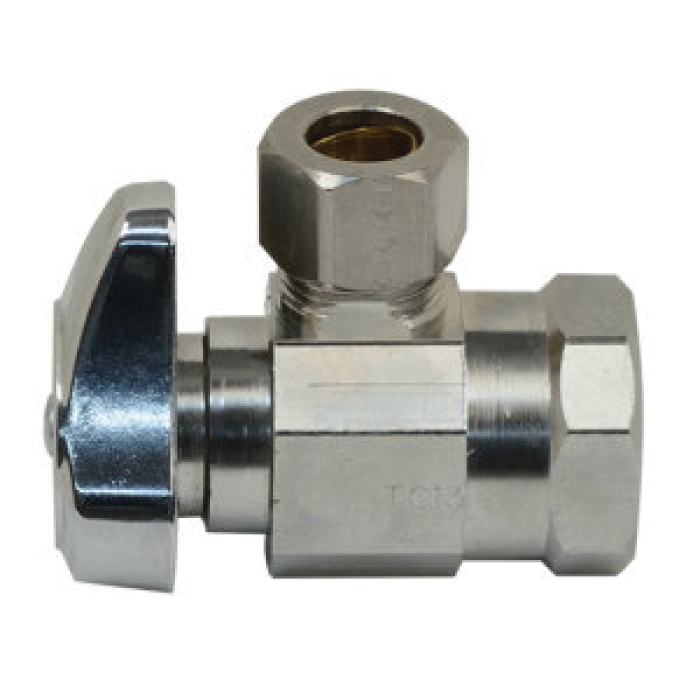

BrassCraft® G2R17X C 1/4 Turn Angle Stop Valve, 1/2 in Inlet, FIP Inlet, 3/8 in Outlet, OD Compression Outlet, 1.95 in D
BrassCraft® G2R17X C 1/4 Turn Angle Stop Valve, 1/2 in Inlet, FIP Inlet, 3/8 in Outlet, OD Compression Outlet, 1.95 in D
| Body Material | : | Brass |
| Depth | : | 1.95 in |
| Finish | : | Chrome-Plated |
| Function Type | : | Valve |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | FIP |
| Maximum Working Pressure | : | 125 psi |
| NSF Specifications | : | Yes |
| Operating Temperature Rating | : | 40 to 160 deg F |
| Outlet Connection Size | : | 3/8 in |
| Outlet Connection Type | : | OD Compression |
| Product Family | : | G2R17 Series |
| Valve Type | : | Angle |
BrassCraft 1/2 in. FIP Inlet x 3/8 in. OD Compression Outlet 1/4-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90 Degree turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
BrassCraft® 1/4 Turn Angle Stop Valve, 1/2 in Inlet, FIP Inlet, 3/8 in Outlet, OD Compression Outlet, Angle Valve, Brass Body, Chrome-Plated, 125 psi Max Working Pressure, 40 to 160 deg F Operating Temperature, NSF Specifications: Yes, 1.95 in D, Product Family: G2R17 Series, Valve Function Type
- Machined one-piece brass body provides strength, durability and long-lasting performance
- 1/2 in. FIP Inlet x 3/8 in. OD Comp Outlet
- Compatible with iron pipe
- For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115 deg F. For those applications, use our KT™ series ball stops.
- One-piece shut-off mechanism provides smooth on-off operation without freeze-ups even after long periods of non-use
- Easy-to-remove handle protects against accidental operation during rough-ins
- Smooth, on/off flow control with a 90 degree turn of the handle
- Chrome and Brass finish
- 100% leak tested to ensure reliable, leak-free performance
- Designed, machined and assembled in the USA
