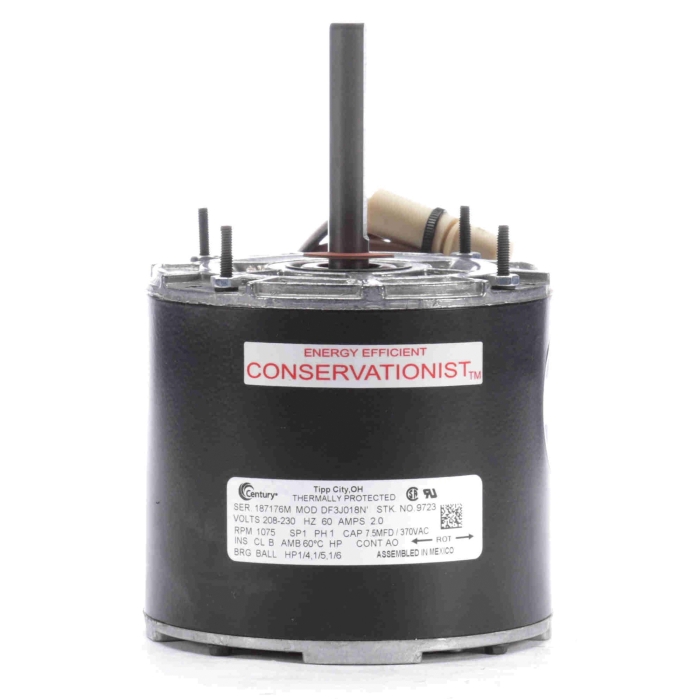

Century® MULTIFIT® 9723 Condenser Fan Motor, 1/6 hp Motor, 208 to 230 V, 1 ph, 1075 rpm Motor, TEAO Enclosure, 42 NEMA
Century® MULTIFIT® 9723 Condenser Fan Motor, 1/6 hp Motor, 208 to 230 V, 1 ph, 1075 rpm Motor, TEAO Enclosure, 42 NEMA
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 299948
MPN: 9723
CPN:
| Amperage Rating | : | 2 A |
| Bearing Type | : | Ball |
| Depth | : | 7-1/2 in |
| Enclosure Type | : | TEAO |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/6 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | Stud |
| NEMA Frame Size | : | 42 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 8.87 in |
| Packaged Height | : | 5.81 in |
| Packaged Width | : | 5.81 in |
| Phase | : | 1 ph |
| Product Family | : | MULTIFIT® |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 3 in |
| Shipping Weight | : | 12 lb |
| Voltage Rating | : | 208 to 230 V |
Century® Condenser Fan Motor, 1/6 hp Motor, 208 to 230 V, 1 ph, 1075 rpm Motor, TEAO Enclosure, 42 NEMA, 1 -Speed, 1/2 in Dia Shaft, 3 in L Shaft, Service Factor 1, 7-1/2 in D, Reversible, 2 A, MULTIFIT®, 12 lb, 5.81 in, 5.81 in, 8.87 in, Motor, Ball Bearing, 60 Hz, Stud Mounting
- MultiFit - Condenser Fan Motor
- Permanent Split Capacitor (PSC) Capacitor Required 7.5 Mfd-440 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 60/70 deg C Ambient
- Ball Bearing
- 36" Leads
- Multi-Mounting System™ (4.33, 4.42, 4.62 Bolt Circle), Extend Studs Shaft End and Opposite Shaft End
