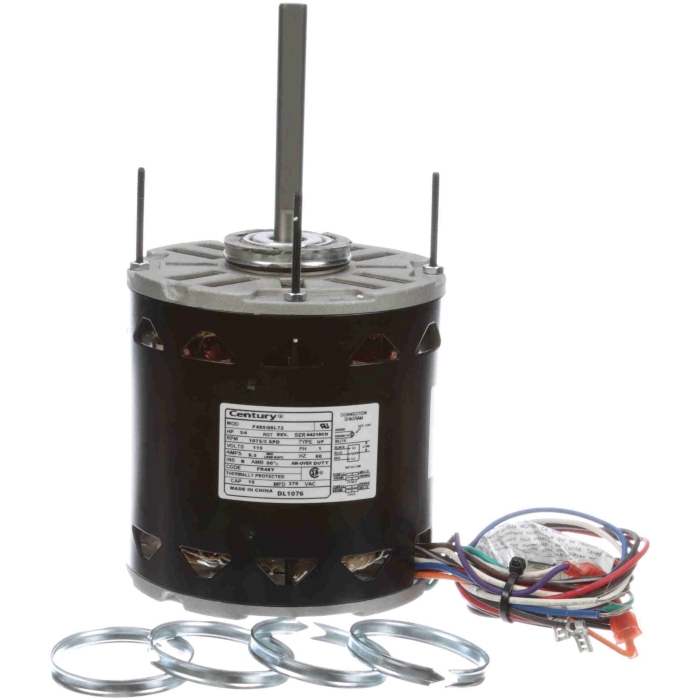

Century® DL1076 Fan and Blower Motor, 3/4 hp Motor, 115 V, 1 ph, 1075 rpm Motor, Permanent Split Capacitor Motor, 9.5 A
Century® DL1076 Fan and Blower Motor, 3/4 hp Motor, 115 V, 1 ph, 1075 rpm Motor, Permanent Split Capacitor Motor, 9.5 A
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 309439
MPN: DL1076
CPN:
| Amperage Rating | : | 9.5 A |
| Bearing Type | : | Ball |
| Depth | : | 10.61 in |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 3/4 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Resilient Ring |
| NEMA Frame Size | : | 48Y |
| Number of Speeds | : | 3 |
| Packaged Depth | : | 15.55 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 6.45 in |
| Phase | : | 1 ph |
| Product Type | : | MOTORS |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shipping Weight | : | 19 lb |
| Voltage Rating | : | 115 V |
