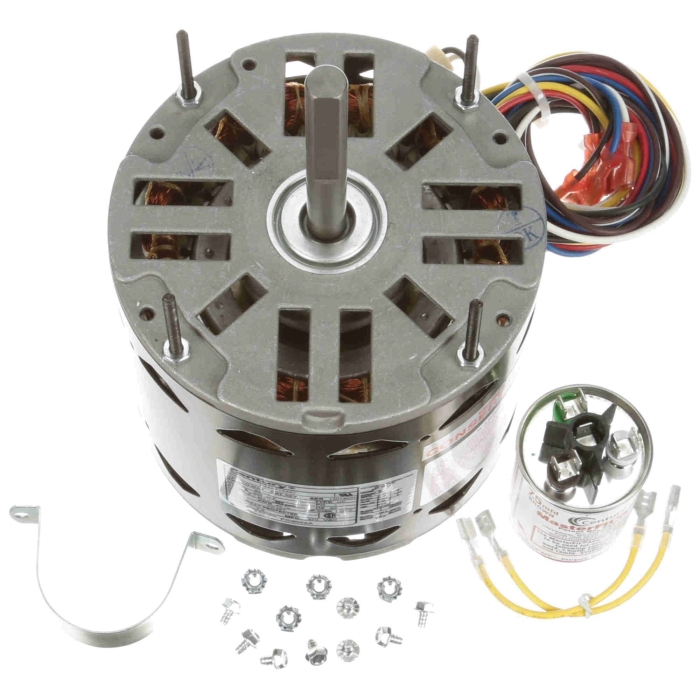

Century® FD6002A Fan and Blower Motor, 1/8 hp, 1/3 hp Motor, 208-230 V, 1 ph, 825 rpm Motor, 4-Speed, Ball Bearing
Century® FD6002A Fan and Blower Motor, 1/8 hp, 1/3 hp Motor, 208-230 V, 1 ph, 825 rpm Motor, 4-Speed, Ball Bearing
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 309444
MPN: FD6002A
CPN:
| Amperage Rating | : | 2.1 A |
| Bearing Type | : | Ball |
| Depth | : | 8.86 in |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/8 hp, 1/3 hp |
| Motor RPM | : | 825 rpm |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Extended Stud |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 4 |
| Packaged Depth | : | 13.78 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 6.41 in |
| Phase | : | 1 ph |
| Product Family | : | MASTERFIT PRO® |
| Product Type | : | MOTORS |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shipping Weight | : | 14 lb |
| Voltage Rating | : | 208-230 V |
