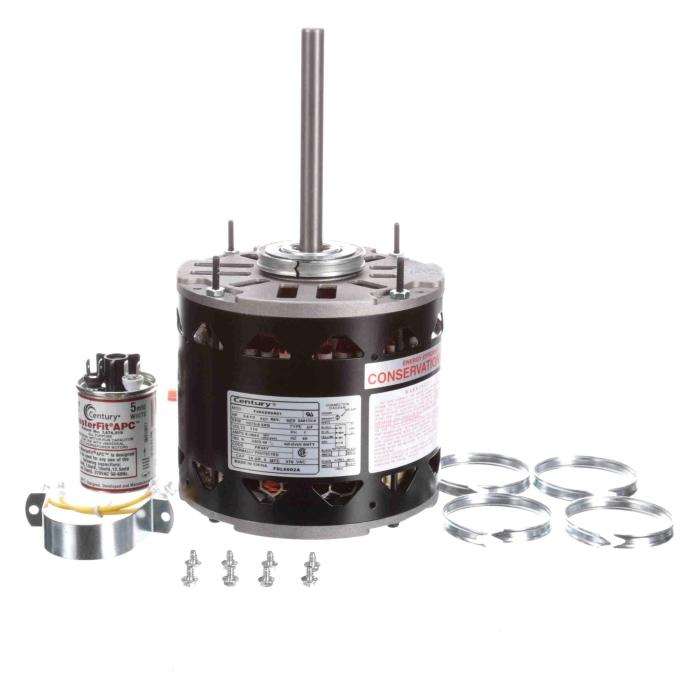

Century® FDL6002A Fan and Blower Motor, 1/5 hp, 3/4 hp Motor, 115 V, 1 ph, 1075 rpm Motor, 4-Speed, Ball Bearing, 9.1 A
Century® FDL6002A Fan and Blower Motor, 1/5 hp, 3/4 hp Motor, 115 V, 1 ph, 1075 rpm Motor, 4-Speed, Ball Bearing, 9.1 A
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 300728
MPN: FDL6002A
CPN:
| Amperage Rating | : | 9.1 A |
| Bearing Type | : | Ball |
| Depth | : | 10.3 in |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/5 hp, 3/4 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Extended Stud, Resilient Ring |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 4 |
| Packaged Depth | : | 13.78 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 6.41 in |
| Phase | : | 1 ph |
| Product Family | : | MASTERFIT PRO® |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shipping Weight | : | 16 lb |
| Voltage Rating | : | 115 V |
Century® Fan and Blower Motor, 1/5 hp, 3/4 hp Motor, 115 V, 1 ph Phase, 1075 rpm Motor, Permanent Split Capacitor Motor, 4 -Speed, Reversible Rotation Direction, Ball Bearing, Open Enclosure, 1/2 in Dia Shaft, 48 NEMA, Service Factor: 1, 10.3 in D, 9.1 A, Product Family: MASTERFIT PRO®, Motor Function Type, 60 Hz Frequency, Extended Stud, Resilient Ring Mounting
- MasterFit Pro - Direct Drive Fan & Blower Motor
- 5.6 Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 10 or 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Air Over
- ClassB Insulation, 40 deg C Ambient
- Ball Bearing
- 1/2 Diameter Shaft with Flat
- 36 Leads with Quick Connect Terminals
- Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
