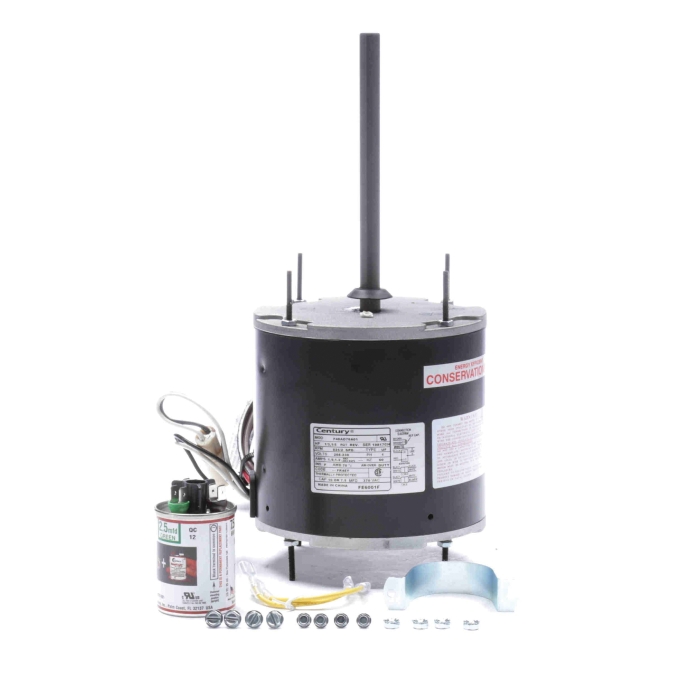

Century® MASTERFIT PRO® FE6001F Condenser Fan Motor, 1/5 hp Motor, 208 to 230 V, 1 ph, 825 rpm Motor, TEAO Enclosure
Century® MASTERFIT PRO® FE6001F Condenser Fan Motor, 1/5 hp Motor, 208 to 230 V, 1 ph, 825 rpm Motor, TEAO Enclosure
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 309445
MPN: FE6001F
CPN:
| Amperage Rating | : | 1.2/1.9 A |
| Bearing Type | : | Ball |
| Depth | : | 12.12 in |
| Enclosure Type | : | TEAO |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/5 hp |
| Motor RPM | : | 825 rpm |
| Mounting Type | : | Stud |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 2 |
| Packaged Depth | : | 13.78 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 6.41 in |
| Phase | : | 1 ph |
| Product Family | : | MASTERFIT PRO® |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 6-1/2 in |
| Shipping Weight | : | 17 lb |
| Voltage Rating | : | 208 to 230 V |
Century® Condenser Fan Motor, 1/5 hp Motor, 208 to 230 V, 1 ph, 825 rpm Motor, TEAO Enclosure, 48 NEMA, 2 -Speed, 1/2 in Dia Shaft, 6-1/2 in L Shaft, Service Factor 1, 12.12 in D, Reversible, 1.2/1.9 A, MASTERFIT PRO®, 17 lb, 6.81 in, 6.41 in, 13.78 in, Motor, Ball Bearing, 60 Hz, Stud Mounting
- MasterFit Pro - Condenser Fan Motor
- Permanent Split Capacitor (PSC) Capacitor Required 10 or 7.5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70 deg C Ambient
- Ball Bearing
- 48" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Mounting Holes in Shell, 4.33BC Lead End End-Frame, Belly Band Mount (Belly Band Not Included)
