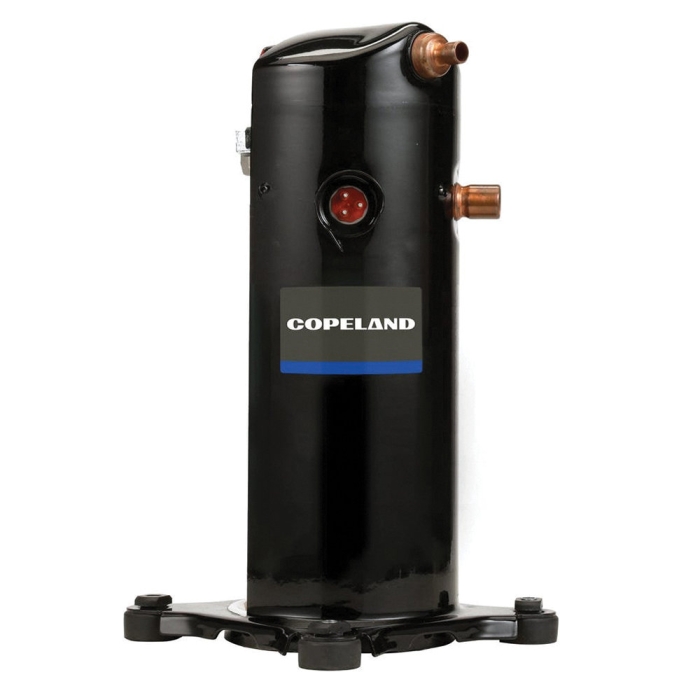

Copeland™ ZR54K5E-PFV-800 Compressor, R-22, R-407C Refrigerant, 208/230 V, 1 ph, 50100 to 69400 Btu/hr Cooling, 10.3 EER
Copeland™ ZR54K5E-PFV-800 Compressor, R-22, R-407C Refrigerant, 208/230 V, 1 ph, 50100 to 69400 Btu/hr Cooling, 10.3 EER
Manufacturer: Copeland LP
Brand: Copeland™
Part #: 303334
MPN: ZR54K5E-PFV-800
CPN:
| BTU Cooling Rating | : | 50100 to 69400 Btu/hr |
| Compressor Oil Type | : | 3MA |
| Compressor Type | : | Scroll |
| Depth | : | 9.7 in |
| Discharge Line Size | : | 1/2 in |
| EER | : | 10.3 |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Compressor |
| Height | : | 16.4 in |
| Initial Oil Charge | : | 42 oz |
| Minimum Circuit Ampacity (MCA) | : | 21 to 21.8 A |
| Phase | : | 1 ph |
| Product Family | : | ZRK5 Series |
| Refrigerant Type | : | R-22, R-407C |
| Suction Line Size | : | 7/8 in |
| Voltage Rating | : | 208/230 V |
| Width | : | 9.7 in |
Copeland Scroll ZRK5 compressor has been built upon the proven Copeland Scroll platform and over 30 years of scroll technology development.
Copeland™ Compressor, R-22, R-407C Refrigerant, 208/230 V, 1 ph Phase, 50100 to 69400 Btu/hr Cooling, Scroll Compressor, 21 to 21.8 A Minimum Circuit Ampacity, 7/8 in Suction Line, 1/2 in Discharge Line, 3MA Compressor Oil, 16.4 in Height, 9.7 in Width, 9.7 in Depth, Product Family: ZRK5 Series, Compressor Function Type, 10.3 EER, 42 oz Initial Oil Charge, 60 Hz Frequency
- Legacy Copeland Scroll fixed speed compressor
- Low-pressure applications (R-22, R-407C)
