| Amperage Rating | : | 1.9 A |
| Body Material | : | Plastic |
| Depth | : | 12.25 in |
| Discharge Connection Size | : | 3/8 in |
| Flow Rate | : | 132 GPH |
| Height | : | 9 in |
| Includes Safety Switch | : | Yes |
| Maximum Fluid Temperature | : | 160 F |
| Maximum Head | : | 22 ft |
| Motor HP | : | 1/30 HP |
| Number of Inlets | : | 4 |
| Package Quantity | : | 6 |
| Phase | : | 1 ph |
| Product Family | : | ULTRACP |
| Product Weight | : | 6.12 lbs |
| Tank Capacity | : | 0.5 gal |
| Voltage Rating | : | 120 V |
| Width | : | 7.5 in |

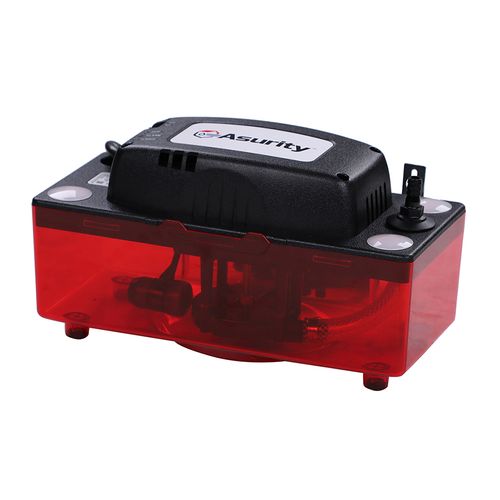

The ULTRACP-22T is a high-performance 120V condensate pump for HVAC/R systems, delivering an industry-leading 22-foot maximum lift. It is designed to automatically and reliably evacuate condensate with temperatures up to 160°F.For enhanced safety, the pump includes a built-in overflow switch with quick-connect terminals to prevent potential water damage. This model comes as a complete package with 20 feet of 3/8-inch discharge tubing, streamlining the installation process.
- Easy Monitoring: A translucent tank and LED status indicators allow for quick visual inspection of pump operation and water level.
- Quiet Operation: Features vibration-dampening feet and motor mounts to minimize noise during use.
- Installation Flexibility: Equipped with four inlet holes, a reversible deck, and sturdy metal mounting tabs for versatile installation.
- Simple Maintenance: The removable duckbill-style check valve is designed for easy cleaning and servicing.
- UL Listed: Certified for safety and performance standards.
