EWC® 10 URD Damper, Round Duct, 10 in Diameter, 24 V, Motorized: Yes, 1.5 in-WC Maximum Static Pressure, 12 in Length
EWC® 10 URD Damper, Round Duct, 10 in Diameter, 24 V, Motorized: Yes, 1.5 in-WC Maximum Static Pressure, 12 in Length
| Amperage Rating | : | 1.5 A |
| Diameter | : | 10 in |
| Duct Shape | : | Round |
| Function Type | : | Damper |
| Length | : | 12 in |
| Material Gauge | : | 24 ga |
| Material | : | Steel |
| Maximum Static Pressure | : | 1.5 in-WC |
| Motorized | : | Yes |
| Voltage Rating | : | 24 V |
| Watts | : | 1 W |

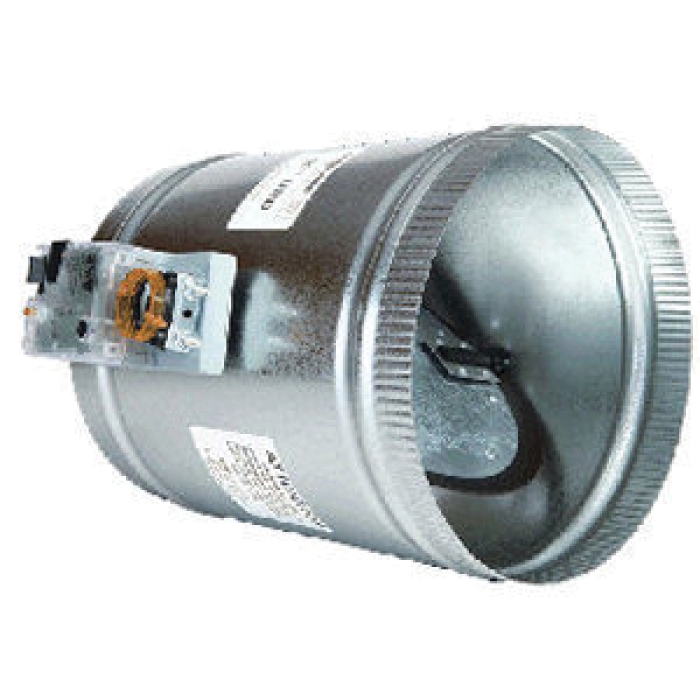

A single blade round damper with a two position, 24 V motor. The motor is powered both ways - powered open and powered closed. The motor features LED's that indicate the position of the motor whether open or closed. The LED's are colored RED for closed and GREEN for open. These indictors are a failsafe measure meaning that they will not illuminate until the blade of the damper has gone to its full open or full closed position. The motor is a 3 wire hook-up with a common, a power open leg and a power closed leg.
EWC® Damper, Round Duct, 10 in Diameter, 24 V, Motorized: Yes, 1.5 in-WC Maximum Static Pressure, 12 in Length, Steel, 24 ga Gauge, 1 W, 1.5 A, Damper Function Type
