Genesis International 47180307 18 AWG Solid Thermostat Wire - 250 ft, 10 Conductors, Brown, CL2
Genesis International 47180307 18 AWG Solid Thermostat Wire - 250 ft, 10 Conductors, Brown, CL2
Manufacturer: Genesis International
Brand: Genesis International
Part #: 296762
MPN: 47180307
CPN:
| Conductor Material | : | Copper |
| ETL Listed | : | Yes |
| For Use With | : | Thermostat |
| Function Type | : | Thermostat Control |
| Jacket Color | : | Brown |
| Jacket Material | : | Non-Plenum |
| Jacket Type | : | CL2 |
| Length | : | 250 ft |
| Number of Conductors | : | 10 |
| Operating Temperature Rating | : | -4-167 F |
| Package Quantity | : | 1 |
| Package Type | : | Reel |
| Packaged Depth | : | 6.1 in |
| Packaged Height | : | 7.2 in |
| Packaged Width | : | 6.5 in |
| Product Type | : | MOTORS |
| Shielded | : | No |
| Shipping Weight | : | 16.65 lbs |
| Solid/Stranded | : | Solid |
| UL Listed | : | Yes |
| UV Resistant | : | Yes |
| Voltage Rating | : | 150 V |
| Wire Size | : | 18 AWG |

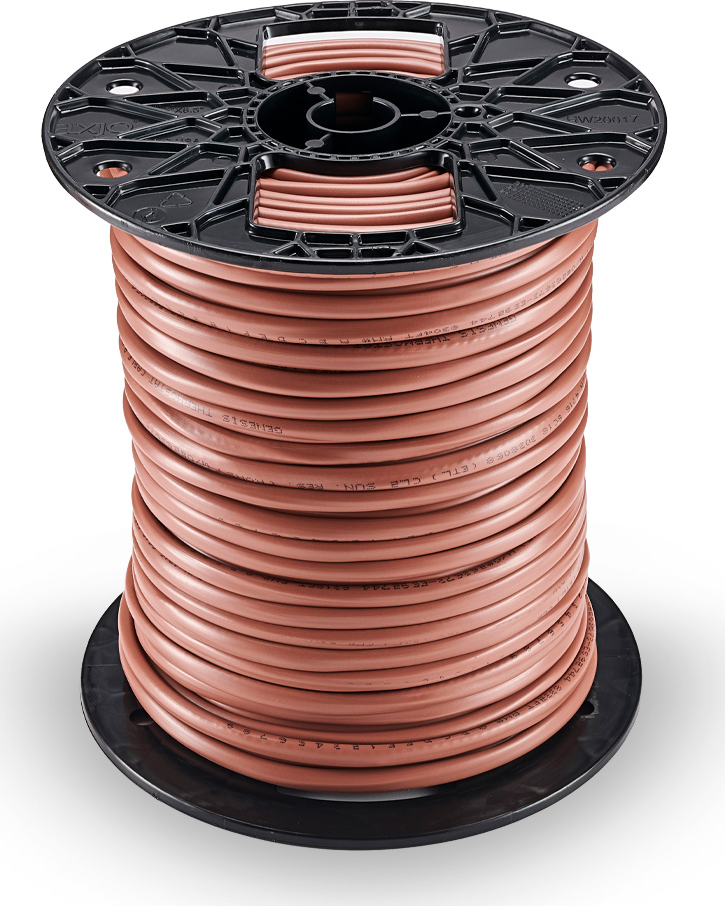

This 18 AWG, 10-conductor thermostat wire is engineered for reliable connections between thermostats and HVAC system controls. It is constructed with solid bare copper conductors to ensure excellent conductivity in low-voltage circuits.Designed for general-purpose use, this CL2-rated cable is suitable for a variety of indoor, in-wall applications. The durable, sunlight-resistant brown PVC jacket provides protection, and the wire is conveniently packaged on a 250-foot reel for easy dispensing on the job site.
Solid Copper Conductors: Features solid bare copper conductors for excellent electrical conductivity and reliable signal transmission in low-voltage circuits.Durable Construction: A tough, UV-resistant PVC jacket and polypropylene insulation protect the conductors from damage during installation and exposure to sunlight.Installation-Friendly Design: Includes a durable rip cord for efficient jacket stripping and sequential length markings for easy tracking of wire usage.Safety Rated: UL listed and CL2 rated for general purpose, in-wall installations within buildings in non-plenum and non-riser spaces.Versatile Application: Rated for 150 volts and a wide temperature range of -4°F to 167°F, making it suitable for a variety of HVAC control wiring jobs.
