| BTU Cooling Rating (Custom) | : | 12,000 BTU/h |
| BTU Cooling Rating | : | 12,000 BTU/h |
| BTU Heating Rating (Custom) | : | 12,000 BTU/h |
| BTU Heating Rating | : | 13,000 BTU/h |
| CFM Airflow (Custom) | : | 300~400~500~600~700 CFM |
| CFM Airflow | : | 350-610 CFM |
| Depth | : | 8.25 in |
| EER (Custom) | : | 12.0 |
| EER | : | 12.5 |
| ENERGY STAR Certified | : | Yes |
| HSPF (Custom) | : | 11.0 |
| HSPF | : | 11.0 |
| Height | : | 12.25 in |
| Liquid Line Size | : | 1/4 in |
| Model Number | : | AW |
| Number of Speeds | : | 5 |
| Packaged Depth | : | 12.375 in |
| Packaged Height | : | 15.75 in |
| Packaged Width | : | 39 in |
| Phase | : | 1 ph |
| Product Family | : | Advanced Plus |

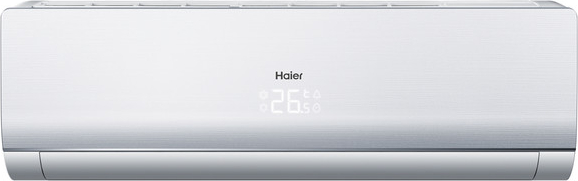

| Product Type | : | Wall-Mount Indoor Unit |
| Product Weight | : | 25.4 lbs |
| Refrigerant Type | : | R-410A |
| SEER (Custom) | : | 23.0 |
| SEER | : | 23.0 |
| Shipping Weight | : | 30.9 lbs |
| Sound Level | : | 45 dB(A) |
| Suction Line Size | : | 3/8 in |
| Tonnage (Custom) | : | 1.0 Ton |
| Tonnage | : | 1.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 35.375 in |
