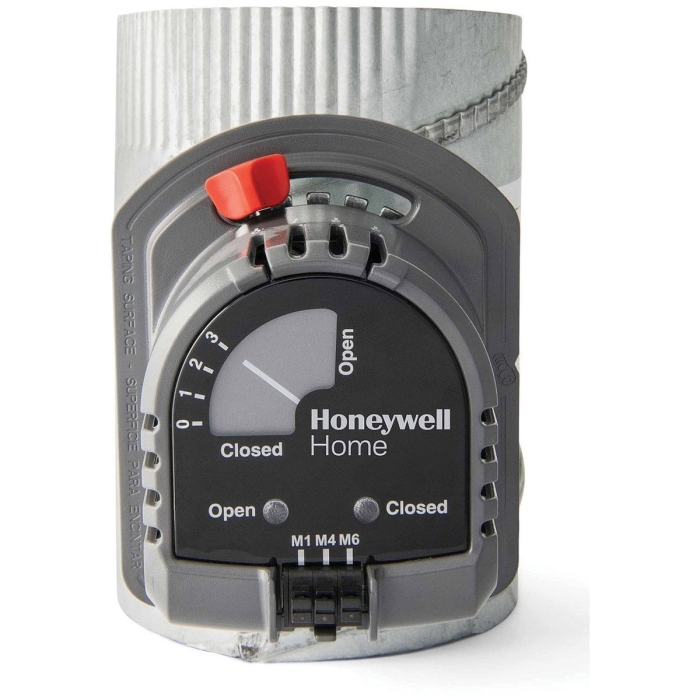

Honeywell Home TrueZONE® ARD10TZ/U Automatic Zone Damper, Round Duct, 10 in Dia, 24 V, Power Close and Spring Open
Honeywell Home TrueZONE® ARD10TZ/U Automatic Zone Damper, Round Duct, 10 in Dia, 24 V, Power Close and Spring Open
Manufacturer: Resideo Technologies Inc
Brand: Honeywell Home
Part #: 300158
MPN: ARD10TZ/U
CPN:
| Actuator Type | : | Power Close and Spring Open |
| Close Time | : | 10 s |
| Depth | : | 4-41/64 in |
| Diameter | : | 10 in |
| Duct Shape | : | Round |
| Function Type | : | Damper |
| Length | : | 4-31/32 in |
| Material | : | Steel |
| Maximum Static Pressure | : | 1 in-WC |
| Motorized | : | Yes |
| Open Time | : | 30 s |
| Product Family | : | TrueZONE® ARD Series |
| VA Rating | : | 8 VA |
| Voltage Rating | : | 24 V |
| Width | : | 3-61/64 in |
Made of galvanized steel, the single blade automatic round HVAC damper features a power-close, spring-open construction to ensure minimal leakage while controlling circulating air in zoned heating, cooling and ventilation systems.
Honeywell Home Automatic Zone Damper, Round Duct, 10 in Dia, 24 V, Power Close and Spring Open, Motorized Yes, 1 in-WC Maximum Static, 30 s Open, 10 s Close, 3-61/64 in W, 4-31/32 in L, 4-41/64 in D, Steel, TrueZONE® ARD Series, Damper, 8 VA VA
- Adjustable close position range stops
- Shipped as power closed/spring return open damper
- Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct
- Blade closes off tightly against gasket for minimal leakage
- Fail-safe, normally open operation
- Simple, easy-to-wire, two-wire installation with a third wire option M4 for LED open only light
