Honeywell YTHX9421R5101WW/U Prestige IAQ Kit w/ Programmable Thermostat - 4H/2C / 3H/2C, Touchscreen / Color LCD, Battery, White
Honeywell YTHX9421R5101WW/U Prestige IAQ Kit w/ Programmable Thermostat - 4H/2C / 3H/2C, Touchscreen / Color LCD, Battery, White
Manufacturer: Honeywell International Inc
Brand: Honeywell
Part #: 303291
MPN: YTHX9421R5101WW/U
CPN:
| Accuracy | : | 1.5 F |
| Ambient Temperature Rating | : | 32-120 F |
| Amperage Rating | : | 1 A |
| Auto Changeover | : | Yes |
| Auxiliary Heat Support | : | Yes |
| Battery Type | : | CR2032 |
| Color | : | White |
| Depth | : | 1.5 in |
| Differential Temperature | : | 1 F |
| Display Type | : | Touchscreen~Color LCD |
| ENERGY STAR Certified | : | Yes |
| For Use With | : | HVAC Systems |
| Function Type | : | Temperature Control |
| Height | : | 3.56 in |
| Humidity Control | : | Yes |
| Humidity Rating | : | 5-90 % RH |
| Installation / Mounting Type | : | Wall Mount |
| Number of Fan Speeds | : | 1 |
| Number of Stages | : | 4H/2C~3H/2C |
| Package Quantity | : | 1 |
| Power Source | : | Battery |
| Product Family | : | Prestige |
| Setpoint Temperature Range | : | 40-99 F |
| Terminal Designations | : | R~RC~RH~C~W-O/B~W2-AUX1~W3-AUX2~Y~Y2~G~A-L/A~U1~U1~U2~U2~U3~U3~S1~S1~S2~S2~S3~S3~S4~S4~A~B~C~D |
| Voltage Rating | : | 24 V |
| Width | : | 5.81 in |

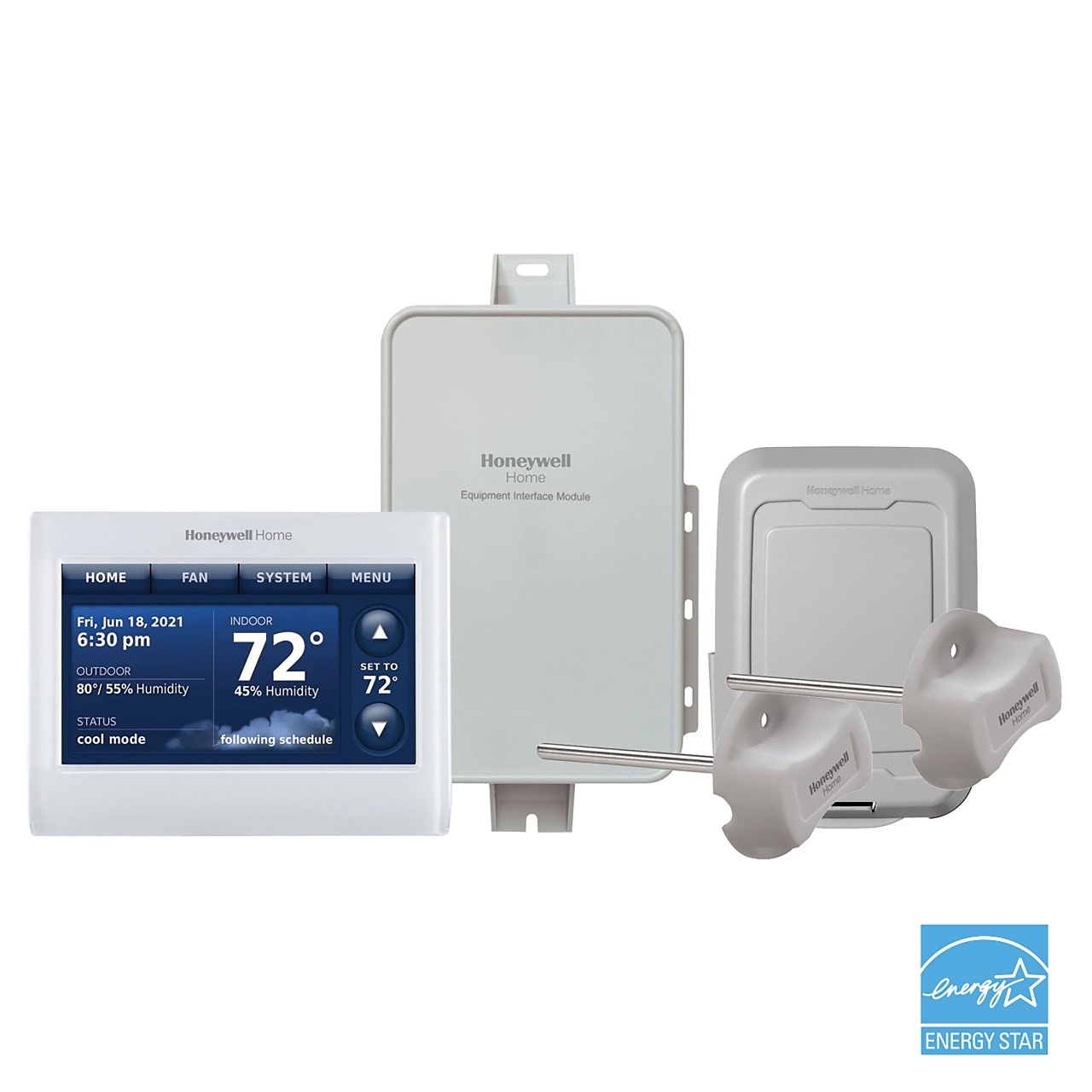

The Honeywell Prestige IAQ Kit offers a comprehensive solution for managing indoor air quality and comfort in residential and light commercial applications. This system provides integrated control over temperature, humidification, dehumidification, and ventilation through a single, intuitive interface.Featuring RedLINK wireless technology, the kit allows for flexible installation and reliable communication between the thermostat, the included Equipment Interface Module, and wireless sensors. It is designed to work with a wide range of multistage conventional and heat pump systems, offering advanced control options for professionals.
- Control heating, cooling and IAQ equipment with only 2-wires at the thermostat, heating, cooling and IAQ equipment wires to the equipment interface module
- Smart schedule - programs in seconds for any lifestyle
- Patented interview based programming and installer setup
- RedLink wireless communication
- Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
- Red LINK internet gateway, portable comfort control (pcc), wireless outdoor sensor, wireless indoor sensor, wireless entry/exit remote, wireless vent and filter boost remote, true steam humidifier with wireless adapter and TrueZone zoning panel with wireless adapter
- Delta T alerts and diagnostics informs customers when their system is not performing as expected with instructions to contact the dealer, provides a sense of security and greater comfort while generating repeat business
- All prestige IAQ kits come standard with a return and discharge air temperature sensor to measure delta T
- Alerts and user interactions log - keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error
- Performance logs - keeps a history of heating and cooling performance
- Increase profit per job by including RedLink accessories that provide comfort and convenience
- USB port for transferring installer setup, customizable reminders, custom events and holidays to multiple thermostats
- USB port for adding the dealer's full color business logo on the screen
- (3) assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling
- 4-assignable inputs on the equipment interface module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
- Extend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminals
- Precise temperature control (+/- 1 deg F) for reliable and consistent temperature
- Multiple staging options to provide comfort or energy savings
- Lithium metal batteries contained in equipment
- 40 - 80% RH cooling and 10 - 60% RH heating humidification setting range, 40 - 80% RH dehumidification setting range
