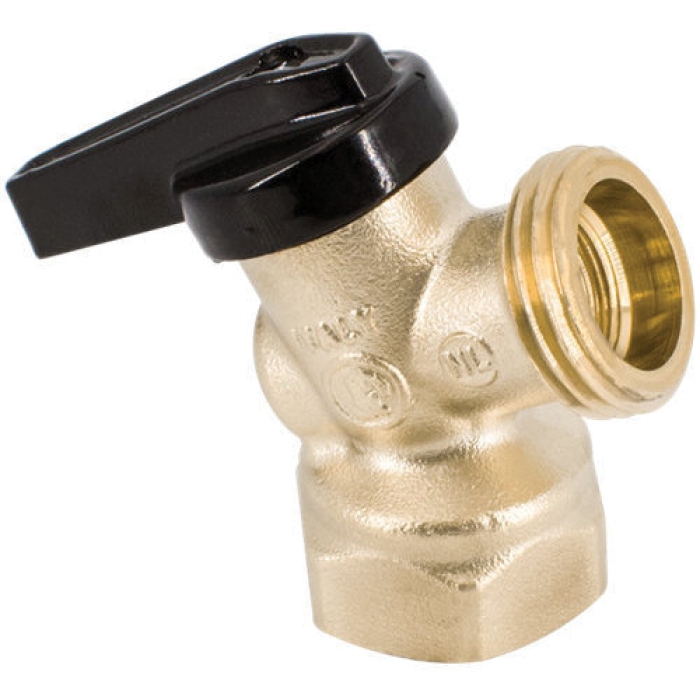

Legend Valve 107-554NL 1/4-Turn Boiler Drain, 1/2 in Inlet Connection, FNPT Inlet Connection, 1/2 in Outlet Connection
Legend Valve 107-554NL 1/4-Turn Boiler Drain, 1/2 in Inlet Connection, FNPT Inlet Connection, 1/2 in Outlet Connection
Manufacturer: Legend Valve
Brand: Legend Valve
Part #: 294685
MPN: 107-554NL
CPN:
| Body Material | : | Brass |
| Function Type | : | Drain |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | FNPT |
| Lead-Free Compliant | : | No |
| Length | : | 2.6 in |
| Maximum Working Pressure | : | 200 psi |
| NSF Specifications | : | Yes |
| Outlet Connection Size | : | 1/2 in |
| Outlet Connection Type | : | MGHT |
| Package Quantity | : | 10 Carton |
| Packaged Height | : | 6.9 in |
| Packaged Width | : | 3.3 in |
| Product Family | : | R-670NL Series |
| Product Weight | : | 0.34 lb |
| Seal Material | : | EPDM |
| Shipping Weight | : | 5.95 in |
| Width | : | 3.6 in |
Legend Valve 1/4-Turn Boiler Drain, 1/2 in Inlet Connection, FNPT Inlet Connection, 1/2 in Outlet Connection, MGHT Outlet Connection, Brass Body, EPDM Seal, 200 psi Maximum Working Pressure, 2.6 in Length, 3.6 in Width, Yes, No, R-670NL Series, Drain Function Type
- Quarter-turn, bubble-tight positive shutoff
- Forged brass construction eliminates casting-related leaks
- More durable than traditional stop-type valves
- Compact design is ideal for confined applications
- Superior flow characteristics
