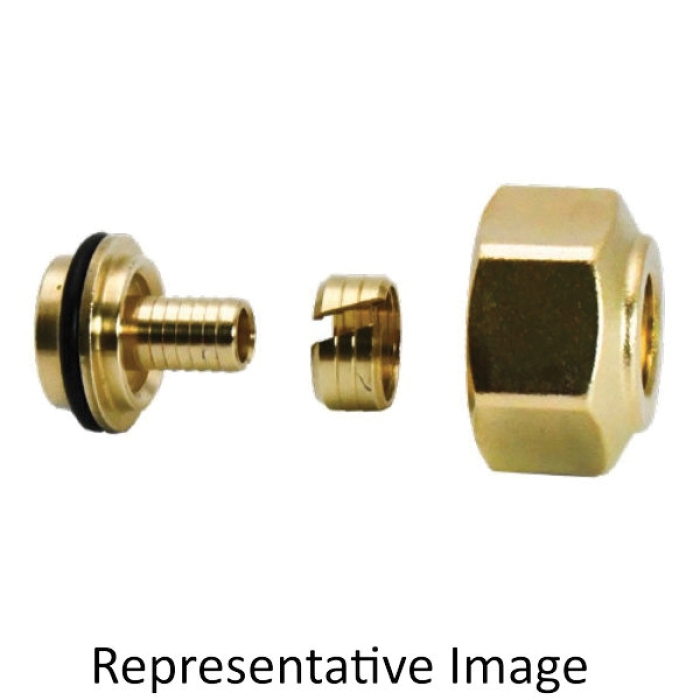

Legend Valve 830-143 Connector, Connector Fitting, Connection Size 1: 1/2 in, Connection Type 1: PEX, Stainless Steel
Legend Valve 830-143 Connector, Connector Fitting, Connection Size 1: 1/2 in, Connection Type 1: PEX, Stainless Steel
| ASTM Specifications | : | Yes |
| Compatible Models | : | Model M-8330, M-8330HC, M-8300 |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | PEX |
| Connection Type 2 | : | PEX |
| Dimensions | : | 1.27 in H x 1.14 in W x 0.81 in D |
| Fitting Type | : | Connector |
| For Use With | : | Model M-8330, M-8330HC and M-8300 Manifolds |
| Function Type | : | Connector |
| Material | : | Stainless Steel |
| Maximum Working Pressure | : | 125 psi |
| Operating Temperature Rating | : | 230 deg F |
| Package Quantity | : | 160 Case |
| Reducing | : | No |
The cast brass Legend T-569 Venturi tee is designed to partially divert water flow from a primary hydronic loop into a secondary loop, through a radiation device, and then returned back to the primary loop. The differential pressure created by these tees creates the flow.
Legend Valve Connector, Connector Fitting, Connection Size 1: 1/2 in, Connection Type 1: PEX, Stainless Steel, No, Connection Size 2: 1/2 in, Connection Type 2: PEX, Yes, 125 psi Maximum Working Pressure, 230 deg F, Model M-8330, M-8330HC, M-8300, For Use With: Model M-8330, M-8330HC and M-8300 Manifolds, Connector Function Type, 1.27 in H x 1.14 in W x 0.81 in D Dimensions
