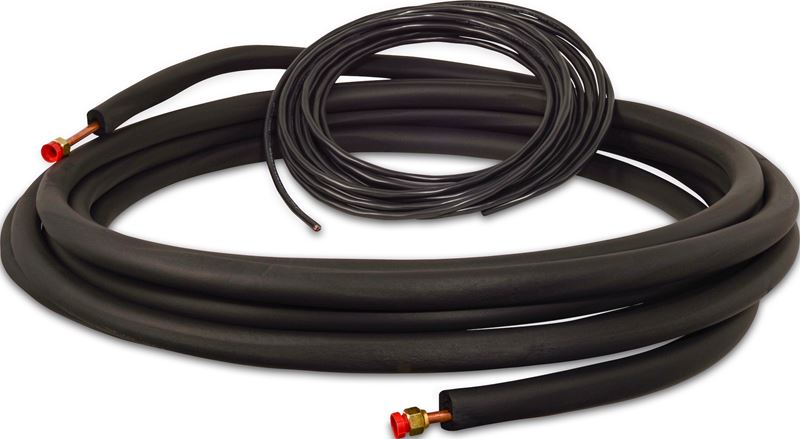

Linesets, Inc 406K0500M144L Titan Mini Split Line Set - 1/4 in Liquid, 3/8 in Suction, 50 ft L, Flare, 1/2 in Insulation
Linesets, Inc 406K0500M144L Titan Mini Split Line Set - 1/4 in Liquid, 3/8 in Suction, 50 ft L, Flare, 1/2 in Insulation
Manufacturer: Linesets, Inc
Brand: Linesets, Inc
Part #: 296112
MPN: 406K0500M144L
CPN:
| Color | : | Black |
| Connection Type | : | Flare |
| Insulated | : | Yes |
| Insulation Material | : | NBR~PVC |
| Insulation Thickness | : | 1/2 in |
| Length | : | 50 ft |
| Liquid Line Size | : | 1/4 in |
| Operating Temperature Rating | : | -70-220 F |
| Package Quantity | : | 1 |
| Product Family | : | Titan |
| Refrigerant Type | : | All Common Refrigerants |
| Suction Line Size | : | 3/8 in |
| Tubing Material | : | Copper |
| Wire Type | : | 14/4 |
This Titan™ mini-split line set is designed for reliable, long-lasting performance in outdoor HVAC installations. It includes 1/4" liquid and 3/8" suction copper lines, both insulated and protected by a durable, co-extruded jacket for superior weather resistance.Ideal for residential and light commercial mini-split systems, this 50-foot line set comes complete with an integrated 14/4 control wire, simplifying the connection process between the indoor and outdoor units. The flexible, closed-cell foam insulation ensures thermal efficiency while the tough outer jacket eliminates the need for additional field coatings.
UV-Resistant Jacket: Features a K-FLEX® TITAN™ co-extruded polymeric jacket that provides excellent protection against UV radiation and harsh weather for outdoor applications.Durable Protection: Designed to resist tearing, abrasion, and mechanical abuse, including incidental impact from lawn care equipment.Simplified Installation: Lightweight, flexible construction allows for easy routing around obstacles, and the one-step design requires no additional field-applied protective coatings.Moisture Resistance: The closed-cell NBR/PVC elastomeric foam insulation inherently resists moisture vapor intrusion, ensuring long-term thermal performance.Integrated Control Wire: Includes a 14/4 stranded wire alongside the refrigerant lines to connect the indoor and outdoor units.Wide Temperature Range: Rated for continuous service temperatures from -70°F to +220°F.
