| Amperage Rating | : | 8.7 A |
| Bearing Type | : | Sleeve |
| Depth | : | 5.5 in |
| Enclosure Type | : | OAO |
| For Use With | : | Furnace |
| Function Type | : | Blower Motor |
| Height | : | 7.6 in |
| Motor HP | : | 1/5~3/4 HP |
| Motor RPM | : | 1,075 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Shafts | : | 1 |
| Number of Speeds | : | 4 |
| Package Quantity | : | 1 |
| Phase | : | 1 ph |
| Product Weight | : | 19.95 lbs |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1.00 |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 5.787 in |
| Voltage Rating | : | 115 V |
| Width | : | 5.5 in |

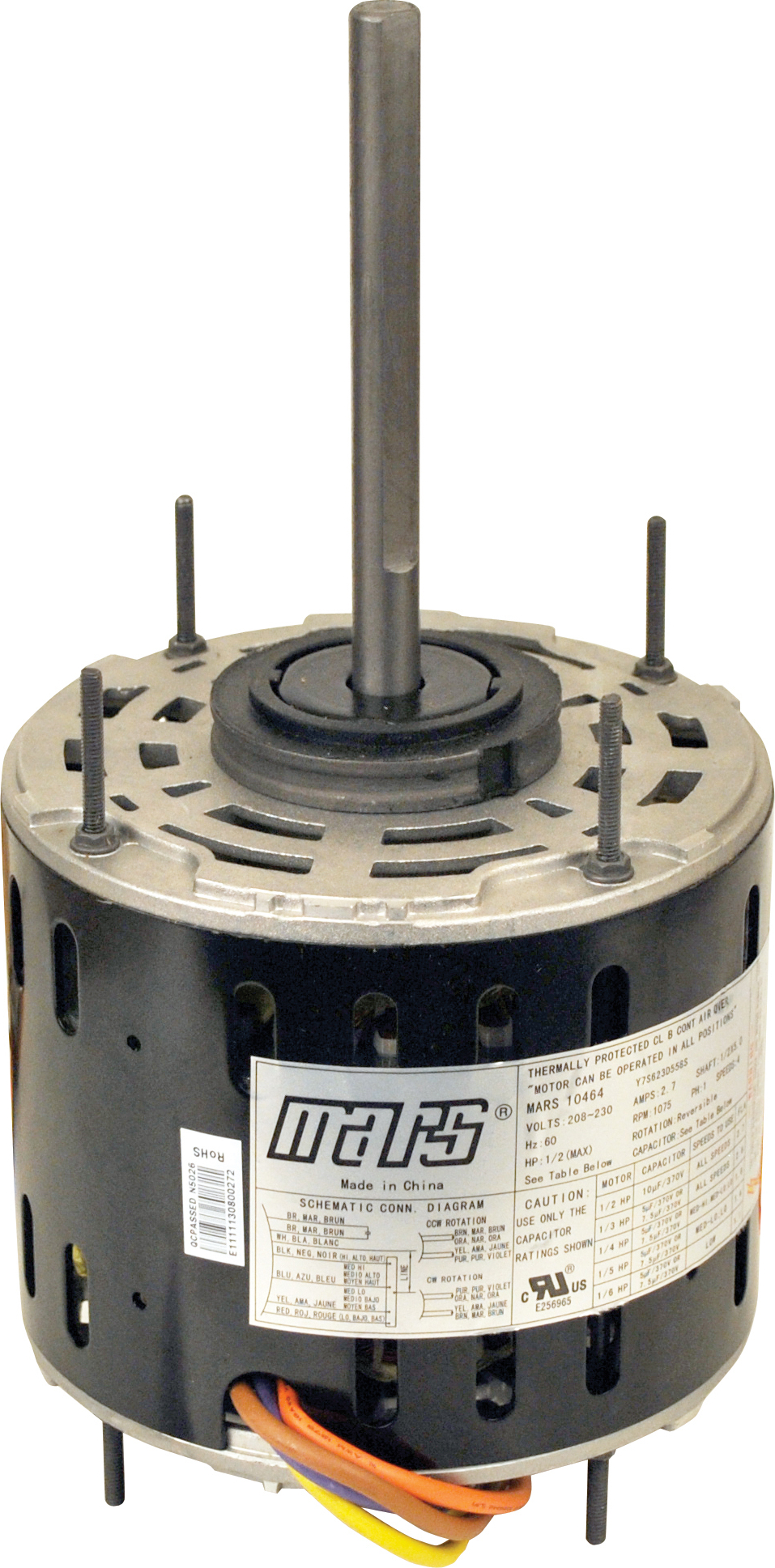

This multi-horsepower direct drive blower motor is an ideal solution for service vehicles, offering the flexibility to replace motors from 1/5 to 3/4 HP in a single unit. Designed as a versatile replacement for various furnace blower applications, it simplifies inventory and ensures you have the right motor on hand.Engineered for reliable performance, this 4-speed PSC motor features an open air over enclosure and is thermally protected against overheating for continuous, fan-duty operation.
Versatile Mounting: Supports multiple configurations, including thru-bolt, belly band, and base mounting, with Rheem-specific mounting holes and screws included.Vibration Dampening: Includes resilient rings to simplify base mounting and reduce operational noise and vibration.Simplified Wiring: Equipped with long 41-inch leads, providing flexibility for various installation scenarios.Durable Operation: Built with Class B insulation for reliability in high-temperature applications and features thermal overload protection.Reversible Rotation: Designed for reversible rotation, allowing for use in systems with different airflow direction requirements.
