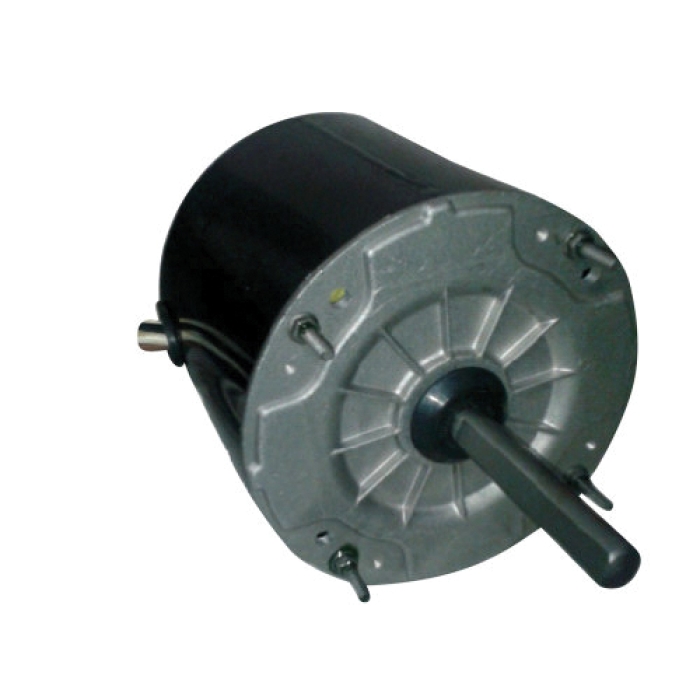

Mars® 10723 Condenser Fan Motor, 1/4 to 1/6 hp Motor, 208 to 230 V, 1 ph, 1075 rpm Motor, TEAO Enclosure, 42 NEMA, 1.5 A
Mars® 10723 Condenser Fan Motor, 1/4 to 1/6 hp Motor, 208 to 230 V, 1 ph, 1075 rpm Motor, TEAO Enclosure, 42 NEMA, 1.5 A
Manufacturer: RectorSeal
Brand: Mars®
Part #: 294670
MPN: 10723
CPN:
| Amperage Rating | : | 1.5 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | TEAO |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/4 to 1/6 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | Permanent Split Capacitor |
| NEMA Frame Size | : | 42 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 Case |
| Packaged Depth | : | 14.8 in |
| Packaged Height | : | 7.3 in |
| Packaged Width | : | 6.7 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 3 in |
| Voltage Rating | : | 208 to 230 V |
Mars® Condenser Fan Motor, 1/4 to 1/6 hp Motor, 208 to 230 V, 1 ph, 1075 rpm Motor, Permanent Split Capacitor Motor, TEAO Enclosure, 42 NEMA, 1 -Speed, 1/2 in Dia Shaft, 3 in L Shaft, Service Factor 1, Reversible, 1.5 A, 7.3 in, 6.7 in, 14.8 in, 1 Case, Motor, Ball Bearing, 60 Hz
- Super-Fit Multi-HP Condenser 42 Frame Fan Motors
- Mtg holes for Trane 4.33, 4.42 and 4.62 bolt circle
- Includes self threading screws
- All angle mount
- Ball Bearing, Single Phase
- Capacitor requirement noted on motor label
- 1/2 inch dia. flatted shaft
- Thermal protected, air over
- 36 in. Leads
