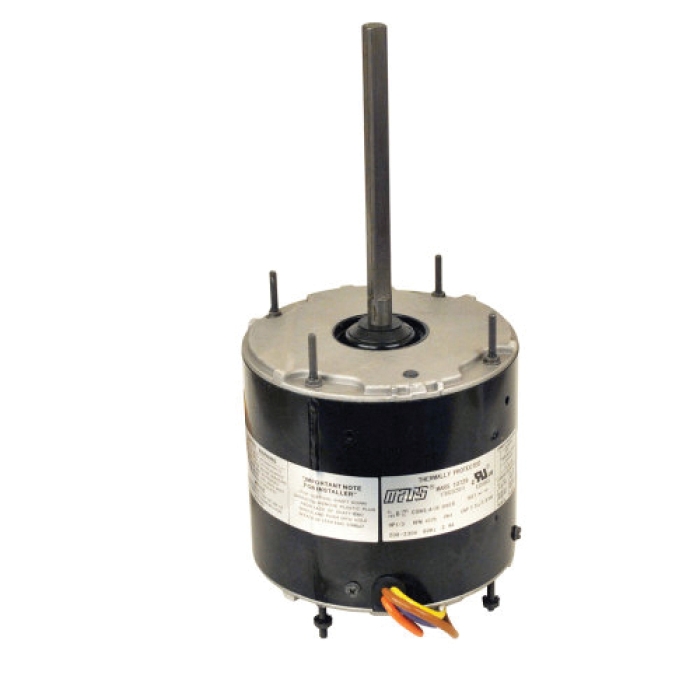

Mars® 10728 Condenser Fan Motor, 1/4 hp Motor, 230 V, 1 ph, 1075 rpm Motor, Permanent Split Capacitor Motor, 1 -Speed
Mars® 10728 Condenser Fan Motor, 1/4 hp Motor, 230 V, 1 ph, 1075 rpm Motor, Permanent Split Capacitor Motor, 1 -Speed
Manufacturer: RectorSeal
Brand: Mars®
Part #: 294671
MPN: 10728
CPN:
| Amperage Rating | : | 1.3/1.5 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | TEAO |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/4 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Stud |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 Case |
| Packaged Depth | : | 14.8 in |
| Packaged Height | : | 7.3 in |
| Packaged Width | : | 7.4 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 6-1/2 in |
| Voltage Rating | : | 230 V |
Mars® Condenser Fan Motor, 1/4 hp Motor, 230 V, 1 ph, 1075 rpm Motor, Permanent Split Capacitor Motor, TEAO Enclosure, 1 -Speed, 1/2 in Dia Shaft, 6-1/2 in L Shaft, Service Factor 1, Reversible, 1.3/1.5 A, 7.3 in, 7.4 in, 14.8 in, 1 Case, Motor, Ball Bearing, 60 Hz, Stud Mounting
- MARS Outdoor Condenser Fan
- Vertical Shaft Up or Shaft Down
- Weep hole in each end shield
- Rheem mounting holes with screws installed
- Water slinger on shaft
- Double full flatted shaft
- Thermally Protected
- Extended Studs/Belly Band/Mounting Holes
