| Amperage Rating | : | 1.5/1.8 A |
| Bearing Type | : | Sleeve |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/4 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Resilient Ring |
| Number of Speeds | : | 3 |
| Package Quantity | : | 1 Case |
| Packaged Depth | : | 14.9 in |
| Packaged Height | : | 7.1 in |
| Packaged Width | : | 6.8 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 4-1/2 in |
| Voltage Rating | : | 208-230 V |

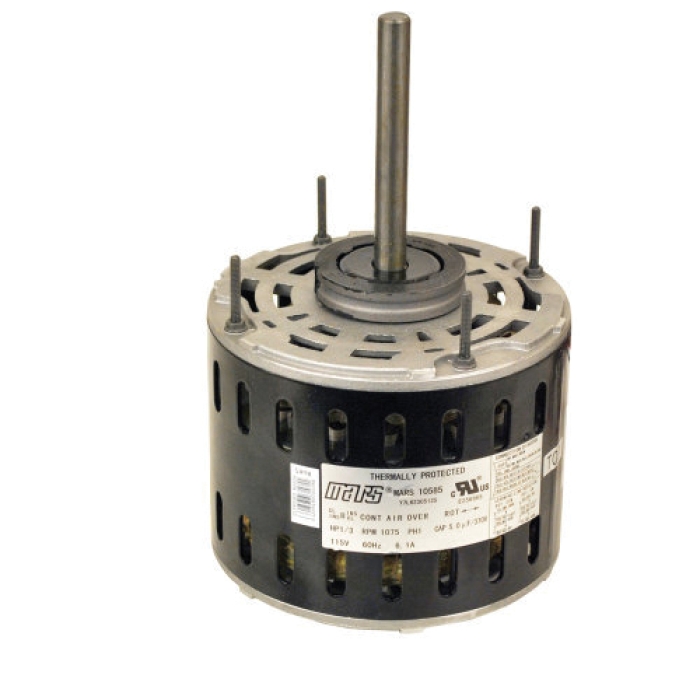

MARS direct drive furnace blower motors are three speed standard efficiency models. All models are electrically reversible and include 2-1/4 inch resilient rings for base mounting. These models have all angle sleeve bearings and have open air over enclosures.
Mars® Blower Motor, 1/4 hp Motor, 208-230 V, 1 ph Phase, 1075 rpm Motor, Permanent Split Capacitor Motor, 3 -Speed, Reversible Rotation Direction, Sleeve Bearing, Open Enclosure, 1/2 in Dia Shaft, 4-1/2 in L Shaft, Service Factor: 1, 1.5/1.8 A, Motor Function Type, 60 Hz Frequency, Resilient Ring Mounting
- MARS Direct Drive Blower Motors
- Rheem mounting holes
- Extended thru bolts shaft end
- Sleeve Bearing
- Capacitor required: 5 MFD 370V
- (2)2-1/4 & (2)2-1/2 Resilient Rings
- Thermal protected, air over
- 36 in. Leads
