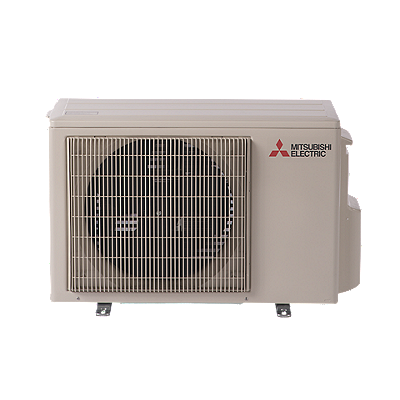

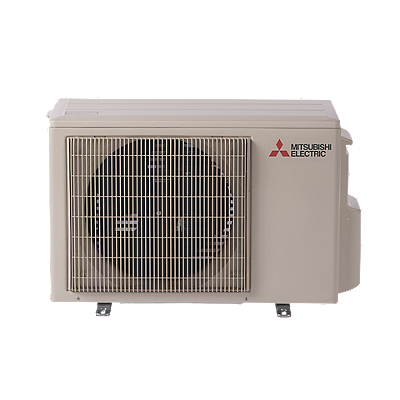

Mitsubishi Electric Trane® MUZ-WX12NL MUZ-WX Series 1.0 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 ph, 18.0 SEER2, 8.5 HSPF2
Mitsubishi Electric Trane® MUZ-WX12NL MUZ-WX Series 1.0 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 ph, 18.0 SEER2, 8.5 HSPF2
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 371482
MPN: MUZ-WX12NL
CPN:
| BTU Cooling Rating (Custom) | : | 12,000 BTU/h |
| BTU Cooling Rating | : | 12,000 BTU/h |
| BTU Heating Rating (Custom) | : | 12,000 BTU/h |
| BTU Heating Rating | : | 12,200 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 11.25 in |
| EER2 (Custom) | : | 9.0 |
| EER2 | : | 9.0 |
| ENERGY STAR Certified | : | No |
| HSPF2 (Custom) | : | 8.0 |
| HSPF2 | : | 8.5 |
| Height | : | 21.625 in |
| Liquid Line Size | : | 1/4 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | MUZ-WX |
| Number of Stages | : | Inverter |
| Number of Zones | : | 1 |
| Packaged Depth | : | 13.25 in |
| Packaged Height | : | 11.25 in |
| Packaged Width | : | 35.5 in |
| Phase | : | 1 ph |
| Product Family | : | MUZ-WX Series |
| Product Type | : | Heat Pump |
| Product Weight | : | 20 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 (Custom) | : | 18.0 |
| SEER2 | : | 18.0 |
| Shipping Weight | : | 23 lbs |
| Sound Level | : | 51 dB(A) |
| Suction Line Size | : | 3/8 in |
| Tonnage (Custom) | : | 1.0 Ton |
| Tonnage | : | 1.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 31.5 in |
