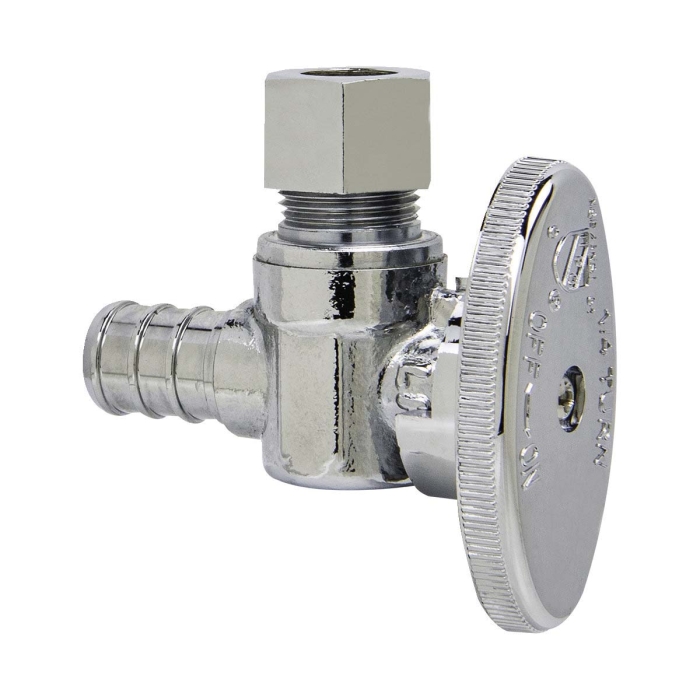

PLUMBSHOP® PLB104X P 1/4 Turn Angle Ball Stop, 1/2 in Inlet, PEX Barbed Inlet, 3/8 in Outlet, OD Compression Outlet
PLUMBSHOP® PLB104X P 1/4 Turn Angle Ball Stop, 1/2 in Inlet, PEX Barbed Inlet, 3/8 in Outlet, OD Compression Outlet
Manufacturer: BrassCraft Manufacturing Company
Brand: PLUMBSHOP®
Part #: 301650
MPN: PLB104X P
CPN:
| Body Material | : | Brass |
| Depth | : | 2.19 in |
| Finish | : | Chrome-Plated |
| Function Type | : | Stop |
| Height | : | 1-3/4 in |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | PEX Barbed |
| Maximum Working Pressure | : | 125 psi |
| NSF Specifications | : | Yes |
| Operating Temperature Rating | : | 40 to 160 deg F |
| Outlet Connection Size | : | 3/8 in |
| Outlet Connection Type | : | OD Compression |
| Product Family | : | PLB104 Series |
| Valve Type | : | Angle |
| Width | : | 0.94 in |
PLUMBSHOP® 1/4 Turn Angle Ball Stop, 1/2 in Inlet, PEX Barbed Inlet, 3/8 in Outlet, OD Compression Outlet, Angle Valve, Brass Body, Chrome-Plated, 125 psi Max Working Pressure, 40 to 160 deg F Operating Temperature, NSF Specifications: Yes, 1-3/4 in H, 0.94 in W, 2.19 in D, Product Family: PLB104 Series, Stop Function Type
- Forged brass body
- 1/2 in. Nom Crimp Barb x 3/8 in. OD Comp
- Compatible with PEX tubing
- For use in potable water distribution systems
- 1/4 turn ball stop; easy on/off operation with a 90 degree turn of the handle
- Chrome plated for corrosion resistance
- For use with water connections in exposed locations only
- Backed by Brasscraft Manufacturing Company
- Attractive chrome finish
- No-lead certified
