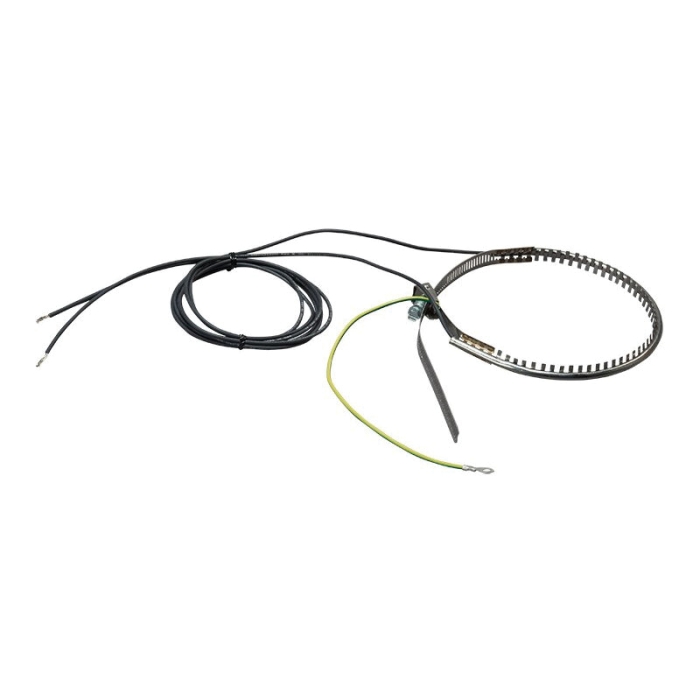

PROTECH™ 44-17402-44 Crankcase Heater, 230 V, 40 W, Belly Band Installation / Mounting, 4-7/8 to 6-3/16 in Diameter
PROTECH™ 44-17402-44 Crankcase Heater, 230 V, 40 W, Belly Band Installation / Mounting, 4-7/8 to 6-3/16 in Diameter
| Compatible Models | : | Model RA17 |
| Diameter | : | 4-7/8 to 6-3/16 in |
| Electrical Connection Type | : | Ring Eyelet Terminal |
| For Use With | : | Model RA17 Air Conditioner and Scroll Type AC Compressors |
| Function Type | : | Heater |
| Installation / Mounting Type | : | Belly Band |
| Lead Length | : | 48 in |
| Packaged Depth | : | 14.2 in |
| Packaged Height | : | 3.5 in |
| Packaged Width | : | 8.85 in |
| Shipping Weight | : | 0.7 lb |
| Voltage Rating | : | 230 V |
| Watts | : | 40 W |
The ProTech® compressor crankcase heater aids in maintaining the desired temperature of the crankcase oil, thereby protecting the compressor from refrigerant migration. Operating as a heat sink, the air compressor heater efficiently absorbs and distributes heat to the oil, minimizing heat dissipation to the surroundings and preventing potential refrigerant migration that could lead to AC compressor damage.
PROTECH™ Crankcase Heater, 230 V, 40 W, Belly Band Installation / Mounting, Ring Eyelet Terminal Electrical Connection, 4-7/8 to 6-3/16 in Diameter, 48 in Lead Length, Compatible Models: Model RA17, For Use With: Model RA17 Air Conditioner and Scroll Type AC Compressors, Heater Function Type
- For use with scroll type ac compressors
- Easy to install and adjustable by screw
- Uses high temperature silicone rubber element
- For optimum heat transfer, mount in lowest position on compressor housing
- Completely moisture proof
- Corrosion resistant
- 230V/40W
- 4-7/8 to 6-3/16 in. Diameter
