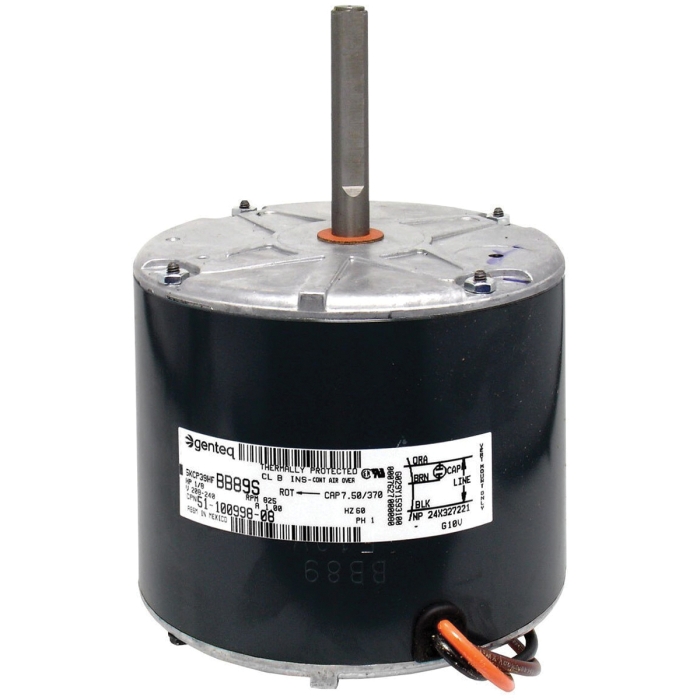

PROTECH™ 51-100998-08 Condenser Motor, 1/8 hp Motor, 208/230 V, 1 ph, 825 rpm Motor, 48 NEMA, 1 -Speed, 1/2 in Dia Shaft
PROTECH™ 51-100998-08 Condenser Motor, 1/8 hp Motor, 208/230 V, 1 ph, 825 rpm Motor, 48 NEMA, 1 -Speed, 1/2 in Dia Shaft
| Amperage Rating | : | 1.7 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | Model RANC, RAPC, RARL, RPNK, RPPB |
| Depth | : | 7-7/16 in |
| For Use With | : | Model RANC, RAPC, RARL, RPNK and RPPB Air Conditioning Condensing Units |
| Function Type | : | Motor |
| Motor HP | : | 1/8 hp |
| Motor RPM | : | 825 rpm |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 14.7 in |
| Packaged Height | : | 6.9 in |
| Packaged Width | : | 7.05 in |
| Phase | : | 1 ph |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 2-3/4 in |
| Shipping Weight | : | 12.26 lb |
| Voltage Rating | : | 208/230 V |
The ProTech® condenser fan motor removes heat from your HVAC system, preventing AC compressor overheating and costly repairs. As an OEM replacement part, this condensing motor extends HVAC equipment life and is easy to install due to matching manufacturer specifications. Using genuine ProTech® AC motors ensures consistent performance, better efficiency and reliable operation for air conditioning systems.
PROTECH™ Condenser Motor, 1/8 hp Motor, 208/230 V, 1 ph, 825 rpm Motor, 48 NEMA, 1 -Speed, 1/2 in Dia Shaft, 2-3/4 in L Shaft, 7-7/16 in D, CCW, 1.7 A, 12.26 lb, 6.9 in, 7.05 in, 14.7 in, Compatible Models: RANC, RAPC, RARL, RPNK, RPPB, For Use With: Model RANC, RAPC, RARL, RPNK and RPPB Air Conditioning Condensing Units, Motor, Sleeve Bearing
- Thermally protected
- AC unit condenser fan motor
- Sleeve bearing
- OEM genuine factory authorized part
