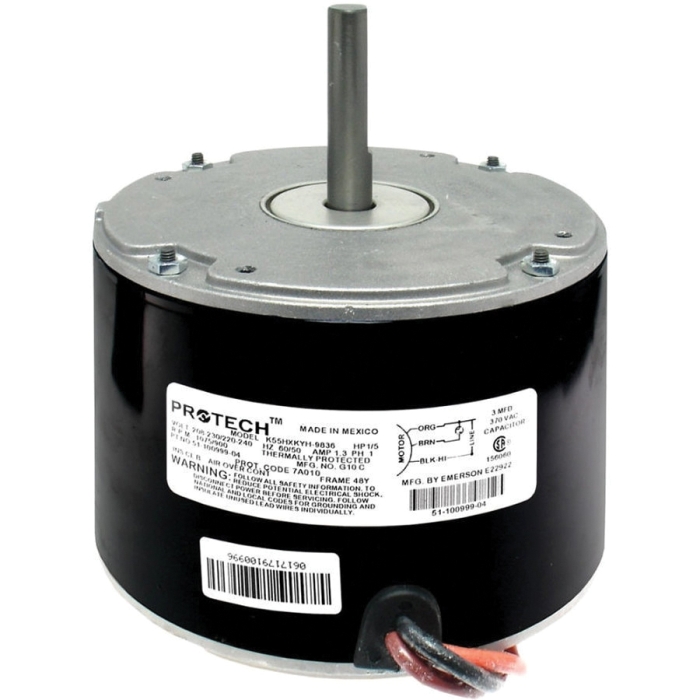

PROTECH™ 51-100999-04 Condenser Motor, 1/5 hp Motor, 208/220/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1 -Speed, 6-1/2 in D
PROTECH™ 51-100999-04 Condenser Motor, 1/5 hp Motor, 208/220/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1 -Speed, 6-1/2 in D
| Amperage Rating | : | 2.23 A |
| Bearing Type | : | Sleeve |
| Compatible Models | : | Model RAMM, RAKB, RALC, RAMC, RPKB |
| Depth | : | 6-1/2 in |
| For Use With | : | Model RAMM, RAKB, RALC, RAMC and RPKB Air Conditioning Condensing Units |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/5 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | End-Boss, Shell Band |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 13.05 in |
| Packaged Height | : | 7.15 in |
| Packaged Width | : | 7.25 in |
| Phase | : | 1 ph |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 2-7/16 in |
| Shipping Weight | : | 9.81 lb |
| Voltage Rating | : | 208/220/230 V |
A ProTech® condenser fan motor drives the AC motor fan that moves air across the condenser coil in air conditioners, releasing heat from your home. This condensing motor works with the AC compressor and evaporator to keep your HVAC system running efficiently and helps prevent compressor overheating. When replacing the condenser motor, choose one that matches your unit's specifications for safety, reliability and energy efficiency.
PROTECH™ Condenser Motor, 1/5 hp Motor, 208/220/230 V, 1 ph, 1075 rpm Motor, 48 NEMA, 1 -Speed, 1/2 in Dia Shaft, 2-7/16 in L Shaft, 6-1/2 in D, CCW, 2.23 A, 9.81 lb, 7.15 in, 7.25 in, 13.05 in, Compatible Models: RAMM, RAKB, RALC, RAMC, RPKB, For Use With: Model RAMM, RAKB, RALC, RAMC and RPKB Air Conditioning Condensing Units, Motor, Sleeve Bearing, 50/60 Hz, End-Boss, Shell Band Mounting
- Thermally protected
- OEM genuine factory authorized part
- Suitable for aftermarket retrofit in many other applications
