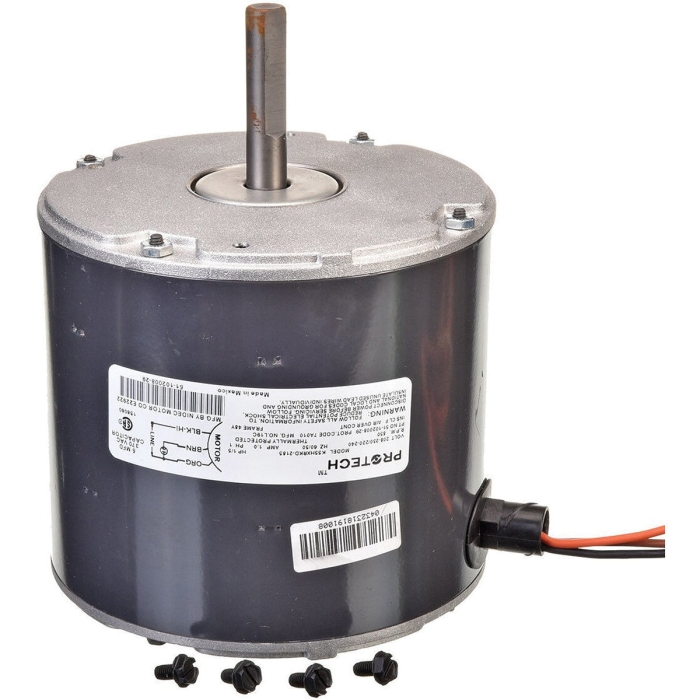

PROTECH™ 51-102008-29 Condenser Motor, 1/5 hp Motor, 208/220/230 V, 1 ph, 825 rpm Motor, 48 NEMA, 1 -Speed, 7-5/16 in D
PROTECH™ 51-102008-29 Condenser Motor, 1/5 hp Motor, 208/220/230 V, 1 ph, 825 rpm Motor, 48 NEMA, 1 -Speed, 7-5/16 in D
Manufacturer: Rheem Manufacturing
Brand: PROTECH™
Part #: 297167
MPN: 51-102008-29
CPN:
| Amperage Rating | : | 2.4 A |
| Bearing Type | : | Ball |
| Depth | : | 7-5/16 in |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/5 hp |
| Motor RPM | : | 825 rpm |
| Mounting Type | : | End-Boss, Shell Band |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 13.2 in |
| Packaged Height | : | 7.4 in |
| Packaged Width | : | 7.45 in |
| Phase | : | 1 ph |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 2-3/16 in |
| Shipping Weight | : | 14.9 lb |
| Voltage Rating | : | 208/220/230 V |
PROTECH™ Condenser Motor, 1/5 hp Motor, 208/220/230 V, 1 ph, 825 rpm Motor, 48 NEMA, 1 -Speed, 1/2 in Dia Shaft, 2-3/16 in L Shaft, 7-5/16 in D, CCW, 2.4 A, 14.9 lb, 7.4 in, 7.45 in, 13.2 in, Motor, Ball Bearing, 50/60 Hz, End-Boss, Shell Band Mounting
