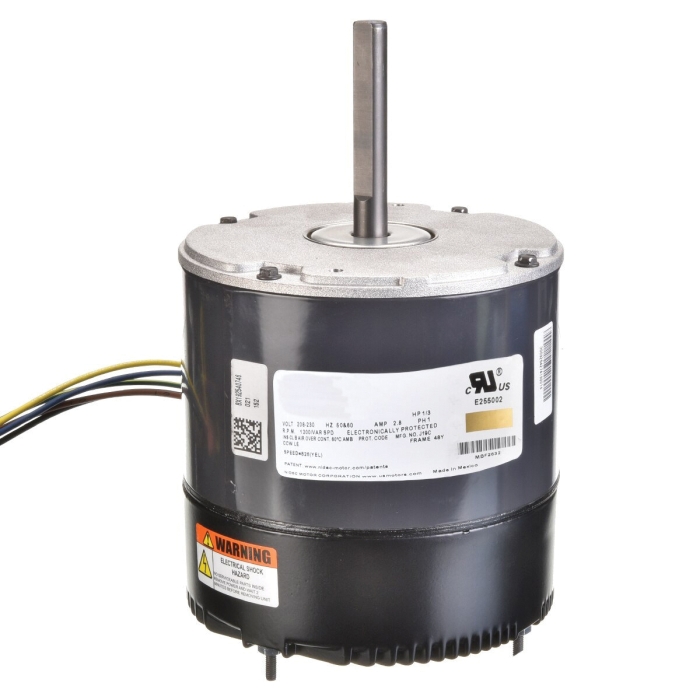

PROTECH™ 51-106394-03 Condenser Motor, 1/2 hp Motor, 208/230 V, 1 ph, 48Y NEMA, 1/2 in Dia Shaft, 3-1/16 in L Shaft, CCW
PROTECH™ 51-106394-03 Condenser Motor, 1/2 hp Motor, 208/230 V, 1 ph, 48Y NEMA, 1/2 in Dia Shaft, 3-1/16 in L Shaft, CCW
Manufacturer: Rheem Manufacturing
Brand: PROTECH™
Part #: 297239
MPN: 51-106394-03
CPN:
| Bearing Type | : | Ball |
| Compatible Models | : | Model RAPM |
| Depth | : | 5-19/32 in |
| For Use With | : | Model RAPM Air Conditioning Condensing Units |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/2 hp |
| Mounting Type | : | Thru-Bolt |
| NEMA Frame Size | : | 48Y |
| Packaged Depth | : | 72 in |
| Packaged Height | : | 6.8 in |
| Packaged Width | : | 14.5 in |
| Phase | : | 1 ph |
| Rotation Direction | : | CCW |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 3-1/16 in |
| Shipping Weight | : | 10.55 lb |
| Voltage Rating | : | 208/230 V |
| Width | : | 5-39/64 in |
PROTECH™ Condenser Motor, 1/2 hp Motor, 208/230 V, 1 ph, 48Y NEMA, 1/2 in Dia Shaft, 3-1/16 in L Shaft, 5-39/64 in W, 5-19/32 in D, CCW, 10.55 lb, 6.8 in, 14.5 in, 72 in, Compatible Models: RAPM, For Use With: Model RAPM Air Conditioning Condensing Units, Motor, Ball Bearing, 50/60 Hz, Thru-Bolt Mounting
