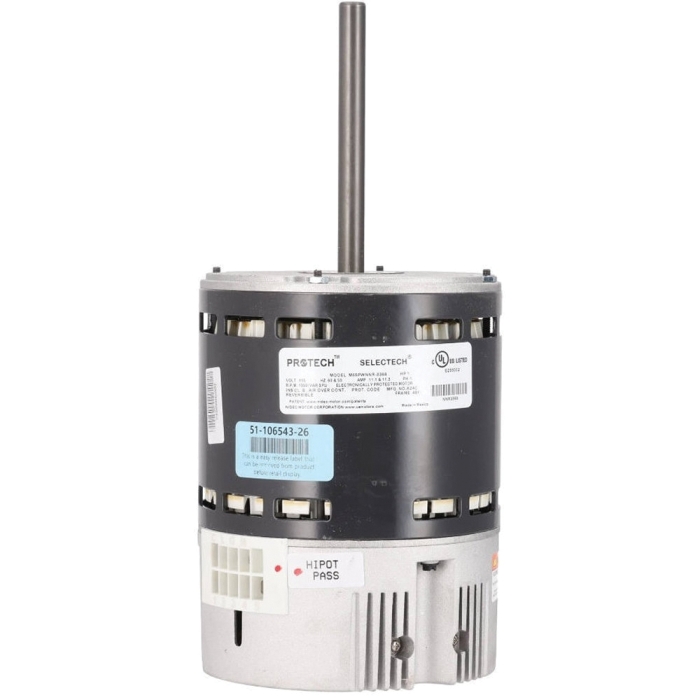

PROTECH™ SelecTech 51-106543-26 Gen 3 Condenser Motor, 1 hp Motor, 120 V, 1050 rpm Motor, 48Y NEMA, 1/2 in Dia Shaft
PROTECH™ SelecTech 51-106543-26 Gen 3 Condenser Motor, 1 hp Motor, 120 V, 1050 rpm Motor, 48Y NEMA, 1/2 in Dia Shaft
Manufacturer: Rheem Manufacturing
Brand: PROTECH™
Part #: 297262
MPN: 51-106543-26
CPN:
| Bearing Type | : | Ball |
| Depth | : | 7-7/16 in |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1 hp |
| Motor RPM | : | 1050 rpm |
| Mounting Type | : | Shell Band |
| NEMA Frame Size | : | 48Y |
| Packaged Depth | : | 11 in |
| Packaged Height | : | 5.5 in |
| Packaged Width | : | 5.5 in |
| Product Family | : | SelecTech |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 5 in |
| Shipping Weight | : | 12.3 lb |
| Voltage Rating | : | 120 V |
| Width | : | 5-39/64 in |
ProTech® motors are designed to operate in the demanding environments found in residential and light commercial HVAC systems. These patented SelecTech® motors achieve current governmental regulated efficiency targets through efficient motor design.
PROTECH™ Gen 3 Condenser Motor, 1 hp Motor, 120 V, 1050 rpm Motor, 48Y NEMA, 1/2 in Dia Shaft, 5 in L Shaft, 5-39/64 in W, 7-7/16 in D, SelecTech, 12.3 lb, 5.5 in, 5.5 in, 11 in, Motor, Ball Bearing, 60 Hz, Shell Band Mounting
- ProTech® OEM replacement motor
- Motor Power 1 horsepower (hp) for 120V voltage applications
- Programmed motor
- For on-site programming, please use K33C motor programmer
