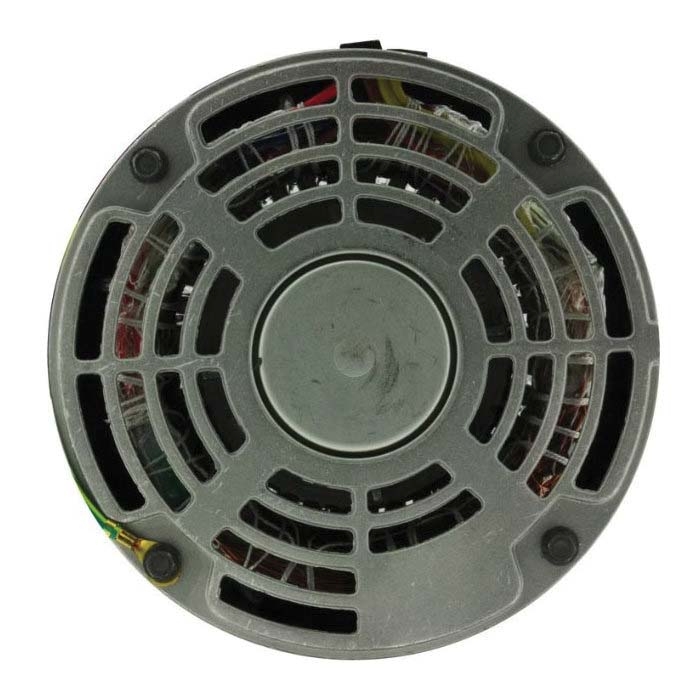

PROTECH™ 51-23017-42 Blower Motor, 1/4 to 3/4 hp Motor, 120 V, 1 ph, 1075 rpm Motor, 4-Speed, Ball Bearing, 48 NEMA
PROTECH™ 51-23017-42 Blower Motor, 1/4 to 3/4 hp Motor, 120 V, 1 ph, 1075 rpm Motor, 4-Speed, Ball Bearing, 48 NEMA
Manufacturer: Rheem Manufacturing
Brand: PROTECH™
Part #: 297319
MPN: 51-23017-42
CPN:
| Amperage Rating | : | 9.5 A |
| Bearing Type | : | Ball |
| Compatible Models | : | RGJA, RGRA, RGRB, RGRJ, RGRK |
| Depth | : | 10-13/16 in |
| For Use With | : | RGJA, RGRA, RGRB, RGRJ and RGRK Gas Furnaces |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/4 to 3/4 hp |
| Motor RPM | : | 1075 rpm |
| Mounting Type | : | Shell Band |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 4 |
| Packaged Depth | : | 13.15 in |
| Packaged Height | : | 7 in |
| Packaged Width | : | 7.45 in |
| Phase | : | 1 ph |
| Product Type | : | MOTORS |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 1/2 in |
| Shaft Length | : | 5 in |
| Shipping Weight | : | 19.34 lb |
| Voltage Rating | : | 120 V |
