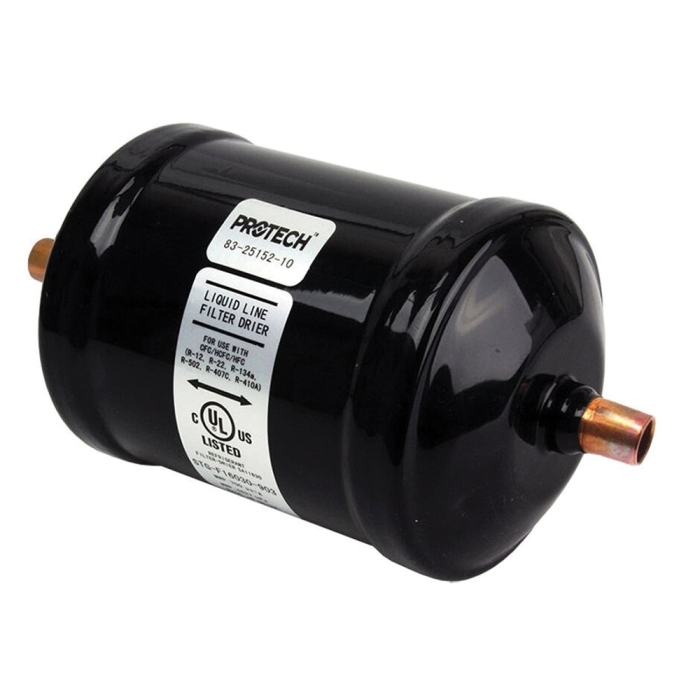

PROTECH™ 83-25152-10 Liquid Line Filter Drier, R-22, R-410A Refrigerant, Compatible Unit Tonnage: 6.6 ton, Yes Bi-Flow
PROTECH™ 83-25152-10 Liquid Line Filter Drier, R-22, R-410A Refrigerant, Compatible Unit Tonnage: 6.6 ton, Yes Bi-Flow
| Bi-Flow | : | Yes |
| Compatible Models | : | Model RPDC, RPKA, RPLA, RPML, RPMM |
| Compatible Unit Tonnage | : | 6.6 ton |
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type 1 | : | Sweat ODF |
| Connection Type 2 | : | Sweat ODF |
| Dessicant Type | : | Activated Alumina/Molecular Sieve |
| Dessicant Volume | : | 16 cu-in |
| Diameter | : | 3-1/8 in |
| For Use With | : | Model RPDC, RPKA, RPLA, RPML and RPMM Package Heat Pumps |
| Function Type | : | Drier |
| Maximum Working Pressure | : | 700 psig |
| Packaged Depth | : | 6.9 in |
| Packaged Height | : | 3.1 in |
| Packaged Width | : | 3.25 in |
| Product Type | : | Drier |
| Refrigerant Type | : | R-22, R-410A |
| Shipping Weight | : | 1.88 lb |
| Width | : | 6-1/8 in |
ProTech® HVAC filter driers extract moisture from the A/C refrigerant and lubricant by absorbing and retaining moisture deep within the desiccant pellets. The desiccant blend employed in these liquid line filter driers is specifically designed to excel in moisture removal. With its high activation level, it maximizes water retention capacity, allowing the liquid line drier core to eliminate a significant volume of water in a single operation; this shields the expansion valves of the filter driers against potential freezing.
PROTECH™ Liquid Line Filter Drier, R-22, R-410A Refrigerant, Compatible Unit Tonnage: 6.6 ton, 3/8 in Connection Size 1, Connection Type 1: Sweat ODF, 16 cu-in Dessicant Volume, Yes Bi-Flow, 3/8 in Connection Size 2, Connection Type 2: Sweat ODF, Activated Alumina/Molecular Sieve Dessicant, 3-1/8 in Diameter, 6-1/8 in Width, 700 psig Maximum Working Pressure, Compatible Models: Model RPDC, RPKA, RPLA, RPML, RPMM, For Use With: Model RPDC, RPKA, RPLA, RPML and RPMM Package Heat Pumps, Drier Function Type
- Solid core, activated alumina with molecular sieve
- Bi flow liquid line filter drier includes internal check valve for heat pump applications
- Removes moisture, scale, acid, dirt and all types of foreign particulate material
- Corrosion resistant epoxy powder paint finish
- Suitable for R454B refrigerant
- Solid copper fittings
