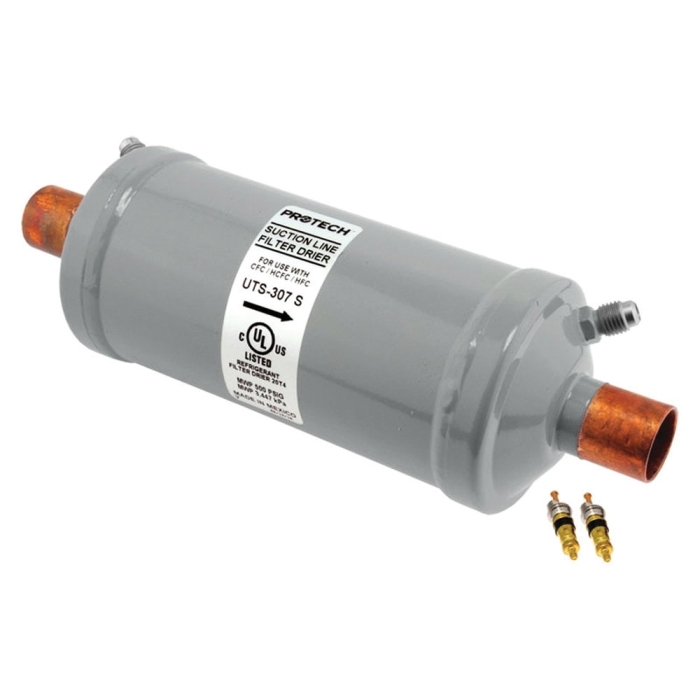

PROTECH™ 83-25153-11 Suction Line Filter Drier, R-22, R-410A Refrigerant, 7/8 in Connection Size 1, 3 in Diameter
PROTECH™ 83-25153-11 Suction Line Filter Drier, R-22, R-410A Refrigerant, 7/8 in Connection Size 1, 3 in Diameter
| Connection Size 1 | : | 7/8 in |
| Connection Size 2 | : | 7/8 in |
| Connection Type 1 | : | Sweat ODF |
| Connection Type 2 | : | Sweat ODF |
| Dessicant Type | : | Activated Alumina/Activated Carbon/Molecular Sieve |
| Dessicant Volume | : | 30 cu-in |
| Diameter | : | 3 in |
| Function Type | : | Drier |
| Maximum Working Pressure | : | 500 psig |
| Packaged Depth | : | 11.3 in |
| Packaged Height | : | 3.4 in |
| Packaged Width | : | 3.6 in |
| Product Type | : | Drier |
| Refrigerant Type | : | R-22, R-410A |
| Shipping Weight | : | 2.81 lb |
| Width | : | 9-13/16 in |
The ProTech® HVAC filter drier extracts moisture from the refrigerant and lubricant by absorbing and retaining moisture deep within the desiccant pellets. The desiccation process in the AC drier filter is specifically designed to excel in moisture removal. With its high activation level, it maximizes water retention capacity, allowing the core to eliminate a significant volume of water in a single operation, thereby shielding the expansion valve of the filter drier against potential freezing.
PROTECH™ Suction Line Filter Drier, R-22, R-410A Refrigerant, 7/8 in Connection Size 1, Connection Type 1: Sweat ODF, 30 cu-in Dessicant Volume, 7/8 in Connection Size 2, Connection Type 2: Sweat ODF, Activated Alumina/Activated Carbon/Molecular Sieve Dessicant, 3 in Diameter, 9-13/16 in Width, 500 psig Maximum Working Pressure, Drier Function Type
- Premium product with activated alumina/activated carbon/molecular sieve desiccant.
- Suitable for R454B refrigerant
- Suction line filter drier for use after a burnout or when major system work has been performed
- One pressure tap at both inlet and outlet ends
- Corrosion-resistant epoxy powder paint finish
- Solid core and copper fittings
