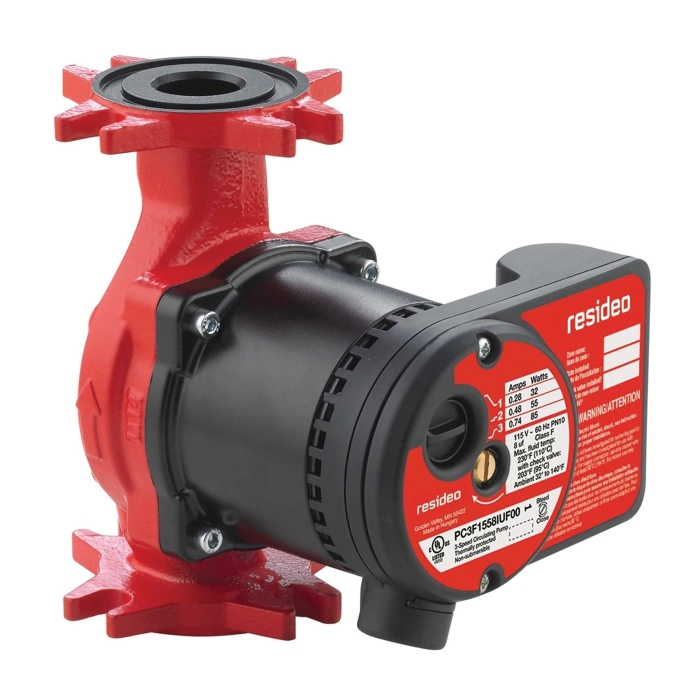

resideo AquaPUMP PC3F1558IUF00/U Circulator Pump, 115 V, 0.74 A, 3-1/5 in Inlet Connection, Flanged Inlet Connection
resideo AquaPUMP PC3F1558IUF00/U Circulator Pump, 115 V, 0.74 A, 3-1/5 in Inlet Connection, Flanged Inlet Connection
Manufacturer: Resideo Technologies Inc
Brand: resideo
Part #: 301570
MPN: PC3F1558IUF00/U
CPN:
| Amperage Rating | : | 0.74 A |
| Body Material | : | Iron |
| Depth | : | 5-1/2 in |
| Flow Rate | : | 15 gpm |
| Height | : | 6-1/2 in |
| Impeller Material | : | Polyamide |
| Inlet Connection Size | : | 3-1/5 in |
| Inlet Connection Type | : | Flanged |
| Maximum Feet of Head | : | 19.4 ft |
| Maximum Working Pressure | : | 145 psi |
| Number of Speeds | : | 3 |
| Outlet Connection Size | : | 3-1/5 in |
| Outlet Connection Type | : | Flanged |
| Product Family | : | AquaPUMP |
| Product Weight | : | 7.8 lb |
| UL Listed | : | Yes |
| Voltage Rating | : | 115 V |
| Watts | : | 85 W |
The PC3F In-Line Wet Rotor Circulator Pump from Resideo with universal flange is designed for applications in closed-loop hydronic heating and cooling systems, as well as in solar systems. The 3-speed circulator pump is non-submersible and usable in dry, frost-free and well-ventilated installations.
resideo Circulator Pump, 115 V, 0.74 A, 3-1/5 in Inlet Connection, Flanged Inlet Connection, 3-1/5 in Outlet Connection, Flanged Outlet Connection, 15 gpm Flow Rate, Maximum Feet of Head: 19.4 ft, Iron Body, Polyamide Impeller, 3 Speed, 6-1/2 in Height, 5-1/2 in Depth, 85 W, 145 psi Maximum Working Pressure, Yes, AquaPUMP
- State-of-the-art hydronic heating and plumbing specialties
- Unique engineering features
- Highest quality assurance - 100% tested
- Easy to install and service
- Save energy
