| Control Voltage | : | 24 V |
| Electrical Connection Type | : | Quick-Connect |
| For Use With | : | Air Conditioner~Furnace |
| Function Type | : | Contactor |
| Number of Poles | : | 2 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 3.4 in |
| Packaged Height | : | 2.2 in |
| Packaged Width | : | 2.85 in |
| Product Type | : | TAPES, SEALANTS & ADHESIVES |
| Shipping Weight | : | 0.635 lbs |
| Switching Current | : | 30 A |

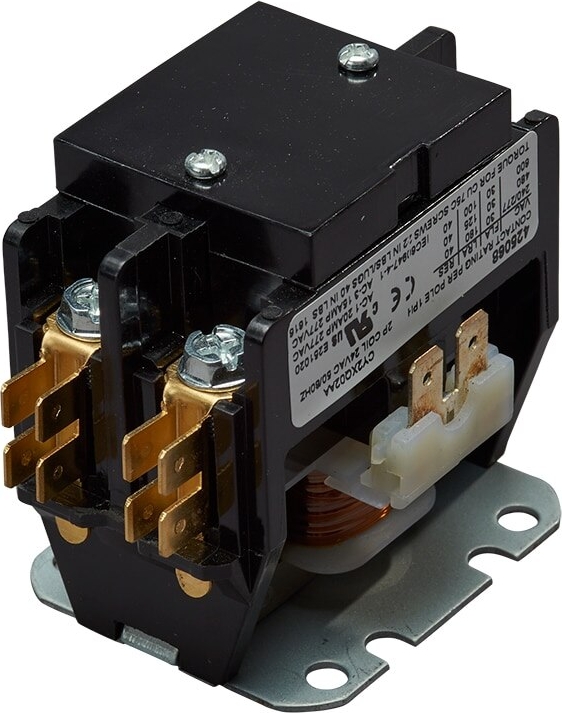

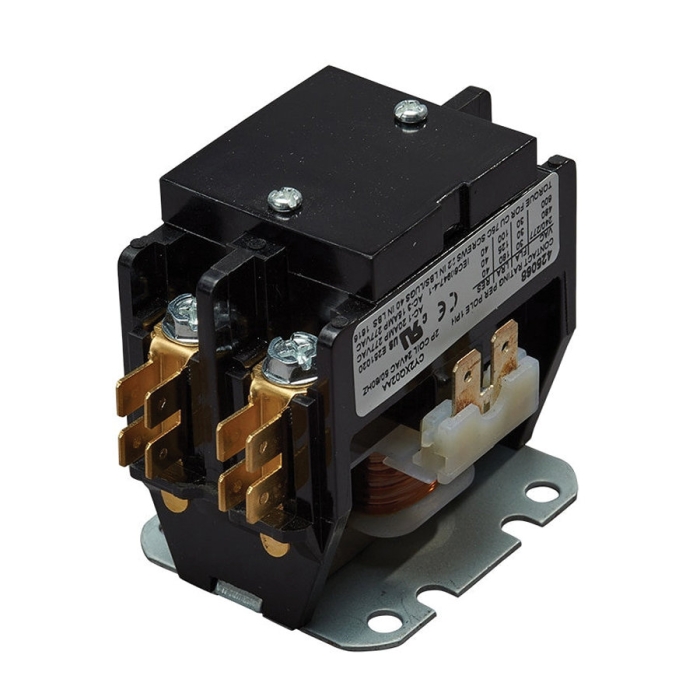

This 2-pole contactor serves as a reliable electromechanical switch for controlling the flow of electricity to major components in an air conditioner or heat pump. It is designed to handle high-current loads, ensuring proper startup and shutdown of equipment like compressors and condenser fans.
- Core Specifications:Features a 2-pole design rated for 30 amps with a 24
- V coil, suitable for common HVAC applications.
- System Activation:Receives a low-voltage signal from the furnace or control board to switch power to high-amperage components.
- Easy Installation:Equipped with quick-connect terminals to simplify wiring and speed up replacement jobs.
