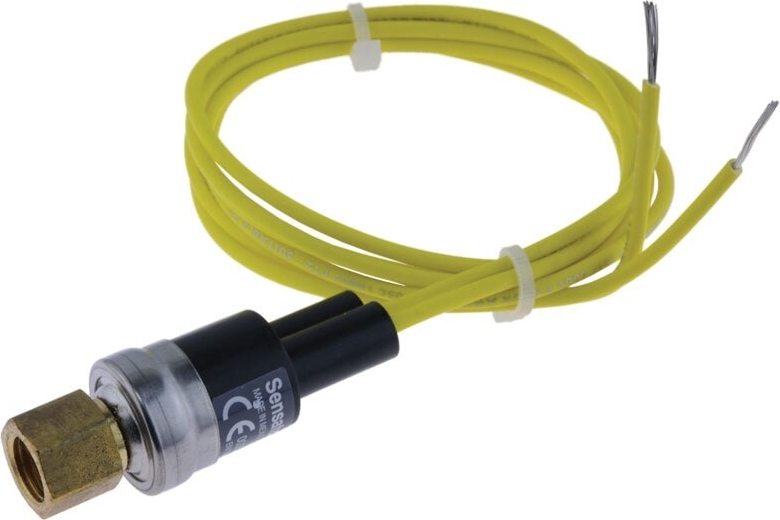

Rheem® 47-102240-03 ProTech Low Pressure Switch - 50 PSI Open, 95 PSI Close, 120V / 230V, Close on Rise, SPST
Rheem® 47-102240-03 ProTech Low Pressure Switch - 50 PSI Open, 95 PSI Close, 120V / 230V, Close on Rise, SPST

Rheem® 47-102240-03 ProTech Low Pressure Switch - 50 PSI Open, 95 PSI Close, 120V / 230V, Close on Rise, SPST

Rheem® 47-102240-03 ProTech Low Pressure Switch - 50 PSI Open, 95 PSI Close, 120V / 230V, Close on Rise, SPST

Manufacturer: Rheem® Manufacturing
Brand: Rheem®
Part #: 296707
MPN: 47-102240-03
CPN:
Adjustable      :      No
Amperage Rating      :      6~36 A
Close Pressure      :      95 PSI
Compatible Models      :      RKKL-B-072-C~RKKL-B-072-D~RKKL-B-072-Y~RKKN-B-072-C~RKKN-B-072-D~RKKN-B-072-Y~RKKN-B-073-C~RKKN-B-073-D~RKKN-B-073-Y~RKKN-C-073-C~RKKN-C-073-D~RKKN-C-073-Y~RKNL-C-036-060-C~RKNL-C-036-060-D~RKNL-C-036-060-Y~RKNL-G-036-060-C~RKNL-G-036-060-D~RKNN-A-036-C~RKNN-A-036-D~RKNN-A-036-J~RKNN-A-036-Y~RKNN-A-048-C~RKNN-A-048-D~RKNN-A-048-J~RKNN-A-048-Y~RKNN-A-060-C~RKNN-A-060-D~RKNN-A-060-J~RKNN-A-060-Y~RKNN-C-036-060-C~RKNN-C-036-060-D~RKNN-C-036-060-Y~RKPL-A-036-060-C~RKPL-A-036-060-D~RKPL-A-036-060-J~RKPL-C-036-060-C~RKPL-C-036-060-D~RKPN-A-036-C~RKPN-A-036-D~RKPN-A-036-J~RKPN-A-036-Y~RKPN-A-048-C~RKPN-A-048-D~RKPN-A-048-J~RKPN-A-048-Y~RKPN-A-060-C~RKPN-A-060-D~RKPN-A-060-J~RKPN-A-060-Y~RKPN-C-036-060-C~RKPN-C-036-060-D~RKPN-C-036-060-Y~RKQN-A-036-C~RKQN-A-036-D~RKQN-A-036-J~RKQN-A-048-C~RKQN-A-048-D~RKQN-A-048-J~RKQN-A-060-C~RKQN-A-060-D~RKQN-A-060-J~RKQN-C-036-C~RKQN-C-036-D~RKQN-C-048-C~RKQN-C-048-D~RKQN-C-060-C~RKQN-C-060-C-V~RKQN-C-060-D~RKQN-C-060-D-V~RLKL-B-072-C~RLKL-B-072-D~RLKL-B-072-Y~RLKN-B-072-C~RLKN-B-072-D~RLKN-B-072-Y~RLKN-B-073-C~RLKN-B-073-D~RLKN-B-073-Y~RLKN-C-073-C~RLKN-C-073-D~RLKN-C-073-Y~RLNL-C-036-060-C~RLNL-C-036-060-D~RLNL-G-036-060-C~RLNL-G-036-060-D~RLNN-A-036-C~RLNN-A-036-D~RLNN-A-036-J~RLNN-A-036-Y~RLNN-A-048-C~RLNN-A-048-D~RLNN-A-048-J~RLNN-A-048-Y~RLNN-A-060-C~RLNN-A-060-D~RLNN-A-060-J~RLNN-A-060-Y~RLNN-C-036-C~RLNN-C-036-D~RLNN-C-048-C~RLNN-C-048-D~RLNN-C-060-C~RLNN-C-060-D~RLPL-C-036-060-C~RLPL-C-036-060-D~RLPN-A-036-C~RLPN-A-036-D~RLPN-A-036-J~RLPN-A-036-Y~RLPN-A-048-C~RLPN-A-048-D~RLPN-A-048-J~RLPN-A-048-Y~RLPN-A-060-C~RLPN-A-060-D~RLPN-A-060-J~RLPN-A-060-Y~RLPN-C-036-C~RLPN-C-036-D~RLPN-C-048-C~RLPN-C-048-D~RLPN-C-060-C~RLPN-C-060-D~RLPN-C-060-Y~RLQN-A-036-C~RLQN-A-036-D~RLQN-A-036-J~RLQN-A-048-C~RLQN-A-048-D~RLQN-A-048-J~RLQN-A-060-C~RLQN-A-060-D~RLQN-A-060-J~RLQN-C-036-C~RLQN-C-036-D~RLQN-C-048-C~RLQN-C-048-D~RLQN-C-060-C~RLQN-C-060-D~RXAC-A08~SKKL-B-072-N~SKKL-B-072-P~SLKL-B-072-N~SLKL-B-072-P
Connection Size 1      :      1/4 in
Connection Sizes (Custom)      :      1/4 in
Connection Type 1      :      SAE Flare
Connection Types (Custom)      :      SAE Flare
Differential Pressure      :      45 PSI
Electrical Connection Type      :      Wire / Pigtail Leads
For Use With      :      HVAC System
Function Type      :      Low Pressure Switch
Open Pressure      :      50 PSI
Package Quantity      :      1
Packaged Depth      :      5.4 in
Packaged Height      :      2.1 in
Packaged Width      :      3.15 in
Product Family      :      ProTech
Product Type      :      Low Pressure Switch
Reset Type      :      Auto
Shipping Weight      :      0.155 lbs
Switch Action      :      Close on Rise
Switch Contact Type      :      SPST
Voltage Rating      :      120~230 V

This ProTech low pressure switch is a genuine OEM replacement part designed to protect HVAC systems from unsafe low-pressure conditions. It is engineered for use in a wide range of Rheem and WeatherKing equipment, ensuring proper fit and reliable function.The control operates with factory-set pressure points and features an automatic reset, restoring system operation once normal pressures return without requiring manual intervention. Its robust design makes it a dependable component for service and repair applications.

  • Hermetically Sealed Sensor:Ensures long-term reliability and helps prevent refrigerant leaks.
  • Durable Construction:Features environmentally sealed leads to protect against moisture and contaminants for reliable electrical connections.
  • Fixed Set Points:Non-adjustable pressure settings of 50 PSI (open) and 95 PSI (close) provide consistent system protection.
  • Easy Installation:Equipped with a standard 1/4-inch female SAE flare connection and 30-inch wire leads for straightforward integration.
  • Reliable Operation:Engineered as a single-pole, single-throw (SPST) switch with a close-on-rise action for dependable performance.
