| Amperage Rating | : | 1.5 A |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Motor HP | : | 1/3 HP |
| Motor RPM | : | 825 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 12.95 in |
| Packaged Height | : | 7.3 in |
| Packaged Width | : | 7.45 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CCW |
| Shipping Weight | : | 13.55 lbs |
| Voltage Rating | : | 208/230 V |

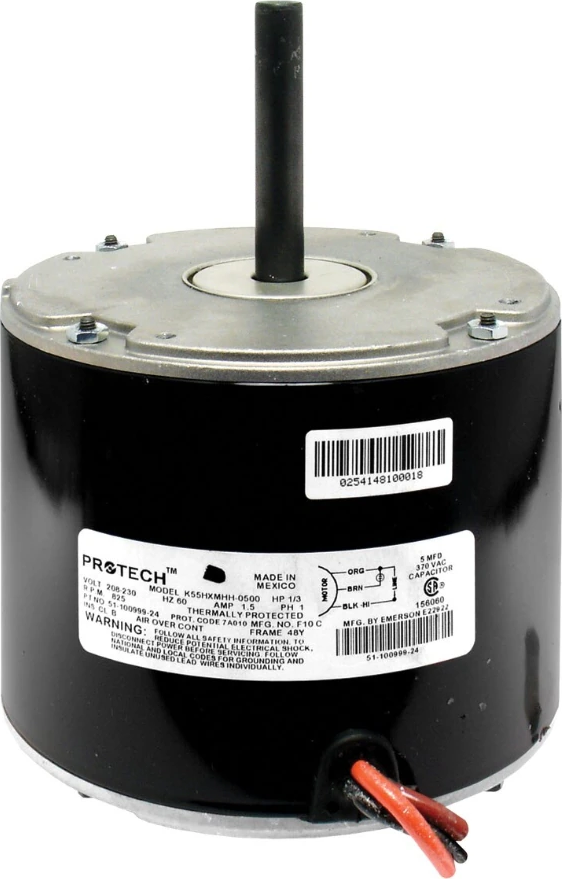

This ProTech condenser fan motor is an OEM replacement designed to efficiently transfer heat from the refrigerant system, protecting the air compressor from overheating. As a direct replacement for old or damaged motors, it matches the original manufacturer's specifications to ensure a faultless installation and extend equipment life. Its design provides reliable and consistent performance in compatible fans and blowers.
