| Bearing Type | : | Ball |
| Compatible Models | : | R802V-MSA,MXA~R802V-ZSA,ZSB~R96VA~R97MV~R97V-KSA~R97V-USA~R98MV~R98V-USA |
| Depth | : | 5.563 in |
| For Use With | : | Furnace |
| Function Type | : | Blower Motor |
| Height | : | 7.688 in |
| Motor HP | : | 3/4 HP |
| Motor Type | : | ECM |
| NEMA Frame Size | : | 48 |
| Number of Shafts | : | 1 |
| Number of Speeds | : | Variable |
| Package Quantity | : | 1 |
| Packaged Depth | : | 16.6 in |
| Packaged Height | : | 6.25 in |
| Packaged Width | : | 6.6 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 3.5 in |
| Shipping Weight | : | 17.95 lbs |
| Voltage Rating | : | 120/230 V |
| Width | : | 5.563 in |

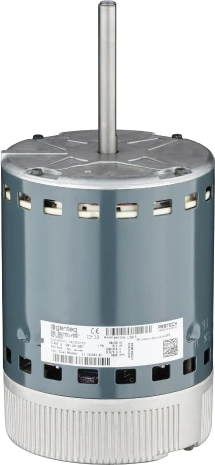

The ProTech® ThinkTank™ 3.0 blower motor delivers accurate, responsive control for HVAC systems, utilizing premium features like constant-airflow capability and climate-specific profiles to optimize performance across a wide speed range.This motor is designed to simplify service calls and installation. It allows the OEM control board to automatically recognize connected units and set the required airflow for heating, cooling, and zoning applications, reducing the need for manual setup.
- Advanced Diagnostics: Features "Black Box" fault reporting and compatibility with the TECINspect diagnostic tool for simplified troubleshooting.
- Flexible Performance: Delivers either constant torque or constant airflow to meet various system requirements.
- Quiet Operation: A patented, resilient rotor design significantly reduces audible noise for a quieter system.
- Durable Construction: Built with reliable ball bearings and encapsulated electronics to protect internal components and ensure a long service life.
- High Efficiency: Engineered to achieve an efficiency rating of up to 80%, helping to reduce overall energy consumption.
- Customizable Operation: Offers an adjustable off-delay and on-delay with a wide ramping range for fine-tuned system performance.
