| Amperage Rating | : | 3.5 A |
| Compatible Models | : | RA1636AC1NB~RA1636AJ1NA~RA1636AJ1NB |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Motor HP | : | 1/3 HP |
| Motor RPM | : | 767 RPM |
| Motor Type | : | ECM |
| Number of Speeds | : | Variable |
| Package Quantity | : | 1 |
| Packaged Depth | : | 14.55 in |
| Packaged Height | : | 6.95 in |
| Packaged Width | : | 7.3 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Rotation Direction | : | CW |
| Shaft Diameter | : | 0.156 in |
| Shaft Length | : | 2.5 in |
| Shipping Weight | : | 12.22 lbs |
| Voltage Rating | : | 208/230 V |

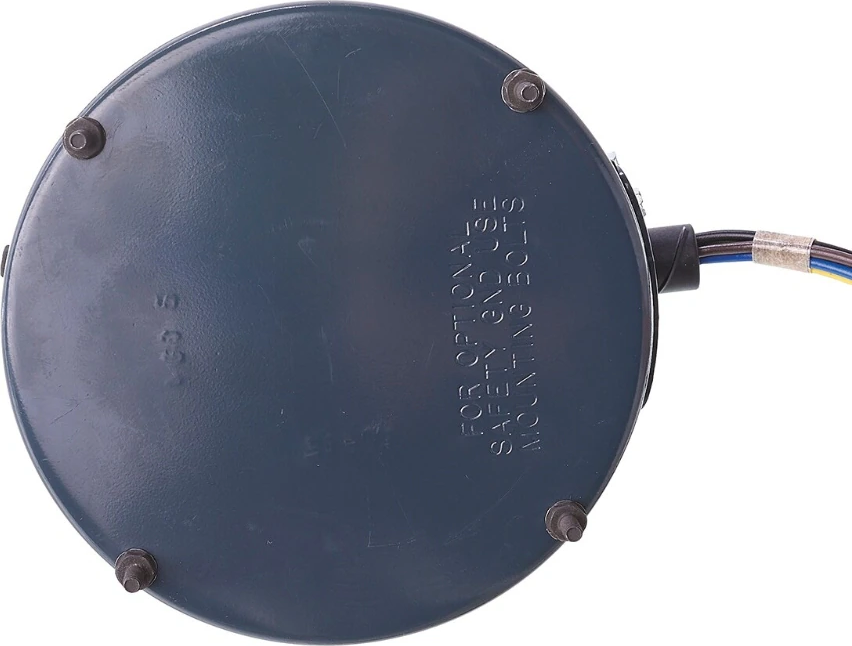

This ProTech ECM motor is a genuine factory-authorized replacement part for select Rheem® outdoor units. It is engineered to deliver the high-efficiency performance of an electronically commutated motor directly to high-voltage applications, eliminating the need for a separate step-down transformer. This design simplifies installation while providing reliable, energy-saving operation.
