| Depth | : | 5.609 in |
| For Use With | : | Condenser |
| Function Type | : | Condenser Fan Motor |
| Height | : | 7.063 in |
| Motor HP | : | 3/4 HP |
| Motor Type | : | ECM |
| NEMA Frame Size | : | 48Y |
| Number of Speeds | : | Variable |
| Package Quantity | : | 1 |
| Packaged Depth | : | 11 in |
| Packaged Height | : | 5.5 in |
| Packaged Width | : | 5.5 in |
| Phase | : | 1 ph |
| Product Family | : | SelecTech Gen 3 |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 5.5 in |
| Shipping Weight | : | 12.3 lbs |
| Voltage Rating | : | 120 V |
| Width | : | 5.609 in |

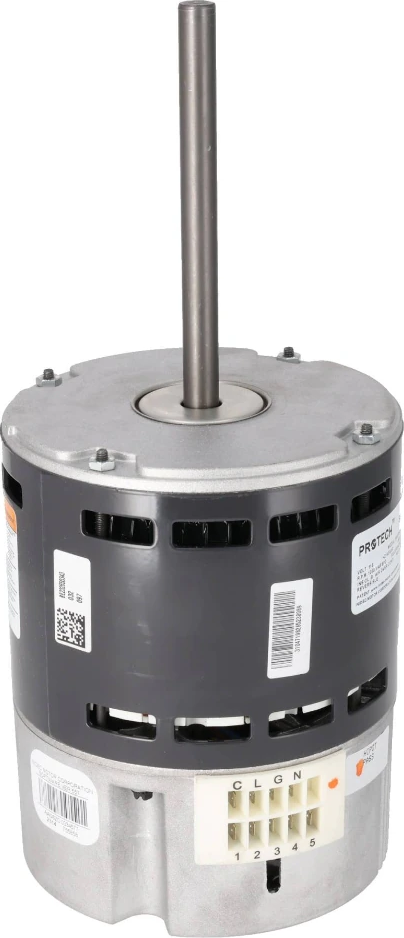

This ProTech 3/4 HP motor is a genuine OEM replacement part for Rheem® condenser units. As part of the SelecTech Gen 3 series, this electronically commutated motor (ECM) delivers efficient, variable-speed performance to match system demands and enhance comfort control.It is engineered to provide the reliability and precise fit of a factory-specified component, ensuring a straightforward installation and the restoration of original system operation.
