| Amperage Rating | : | 1.3 A |
| Compatible Models | : | RAKA~RAMB~RPKA~RPLA~RPMC~RPML~RQLA~RQMA~RRKA-A~RRMA-A~RSMA |
| Depth | : | 5.625 in |
| Function Type | : | Condenser Fan Motor |
| Height | : | 3.563 in |
| Motor HP | : | 1/5 HP |
| Motor RPM | : | 1,075 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 21.65 in |
| Packaged Height | : | 7.1 in |
| Packaged Width | : | 7.35 in |
| Phase | : | 1 ph |
| Product Family | : | ProTech |
| Product Type | : | THERMOSTATS |
| Rotation Direction | : | Reversible |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 4.25 in |
| Shipping Weight | : | 10.14 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.625 in |

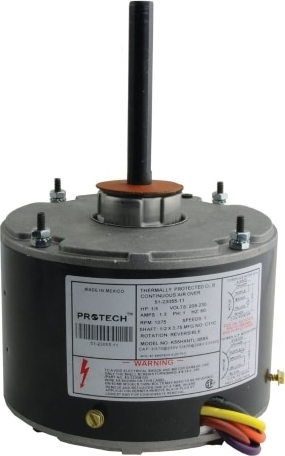

The ProTech 51-23055-11 is a 1/5 HP PSC condenser fan motor engineered for reliable performance in residential and light commercial HVAC systems. As a genuine factory-authorized part, it ensures a proper fit and function when replacing old or damaged motors in compatible units.This single-speed motor operates at 1,075 RPM and is designed to efficiently transfer heat away from the condenser coil, helping to maintain system performance and extend equipment life. Its robust construction makes it a dependable choice for both OEM replacement and general aftermarket service.
- OEM Replacement: Approved as a genuine replacement for a wide range of Rheem® and WeatherKing condenser units.
- Overload Protection: Features built-in thermal protection to safeguard the motor against overheating during operation.
- Durable Bearings: Equipped with sleeve bearings to ensure consistent performance and a long service life.
- Installation Flexibility: Features a reversible rotation and multiple mounting options, including shell-band, shell-screw, and thru-bolt, to accommodate various installation requirements.
