| Amperage Rating | : | 2.86~2.6 A |
| Depth | : | 5.625 in |
| Enclosure Type | : | TEAO |
| For Use With | : | Condenser |

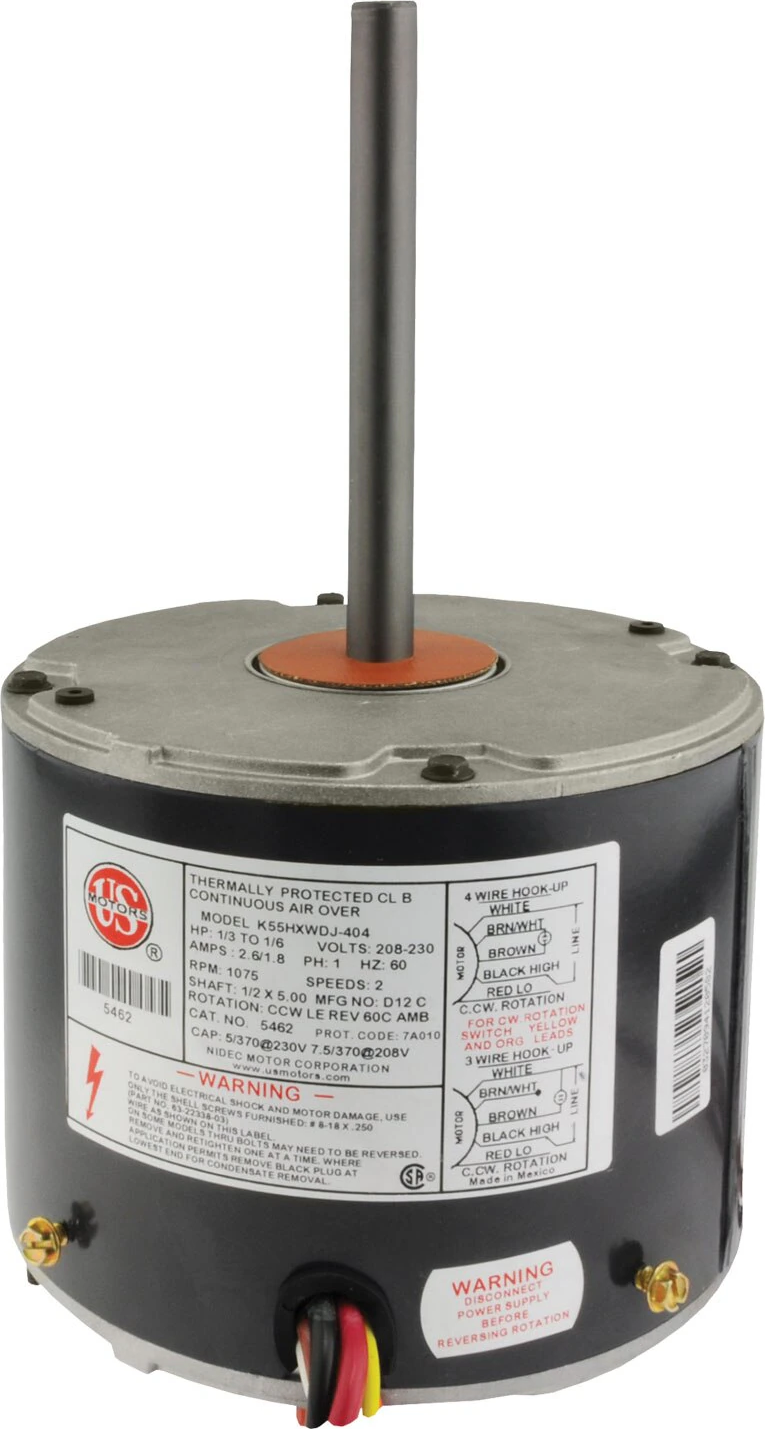

| Function Type | : | Condenser Fan Motor |
| Height | : | 9.625 in |
| Motor HP | : | 1/6~1/3 HP |
| Motor RPM | : | 1,075 RPM |
| Motor Type | : | PSC |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 2 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 15.75 in |
| Packaged Height | : | 7.25 in |
| Packaged Width | : | 7.3 in |
| Phase | : | 1 ph |
| Product Family | : | RESCUE |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1.00 |
| Shaft Diameter | : | 0.5 in |
| Shaft Length | : | 5 in |
| Shipping Weight | : | 14.02 lbs |
| Voltage Rating | : | 208/230 V |
| Width | : | 5.625 in |
