| Amperage Rating | : | 0.62 A |
| CFM Airflow (Custom) | : | 100 CFM |
| CFM Airflow | : | 100 CFM |
| Compatible Models | : | RKKA~RKKB~RRKA-A~RRMA-A |
| Depth | : | 11.5 in |
| Enclosure Type | : | ODP |
| For Use With | : | Furnace |
| Function Type | : | Draft Inducer |
| Height | : | 11 in |
| Motor HP | : | 1/25 HP |
| Motor RPM | : | 3,200 RPM |
| Motor Type | : | Shaded Pole |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 12.1 in |
| Packaged Height | : | 9.85 in |
| Packaged Width | : | 12.05 in |
| Phase | : | 1 ph |
| Shipping Weight | : | 5.76 lbs |
| Voltage Rating | : | 208/230 V |

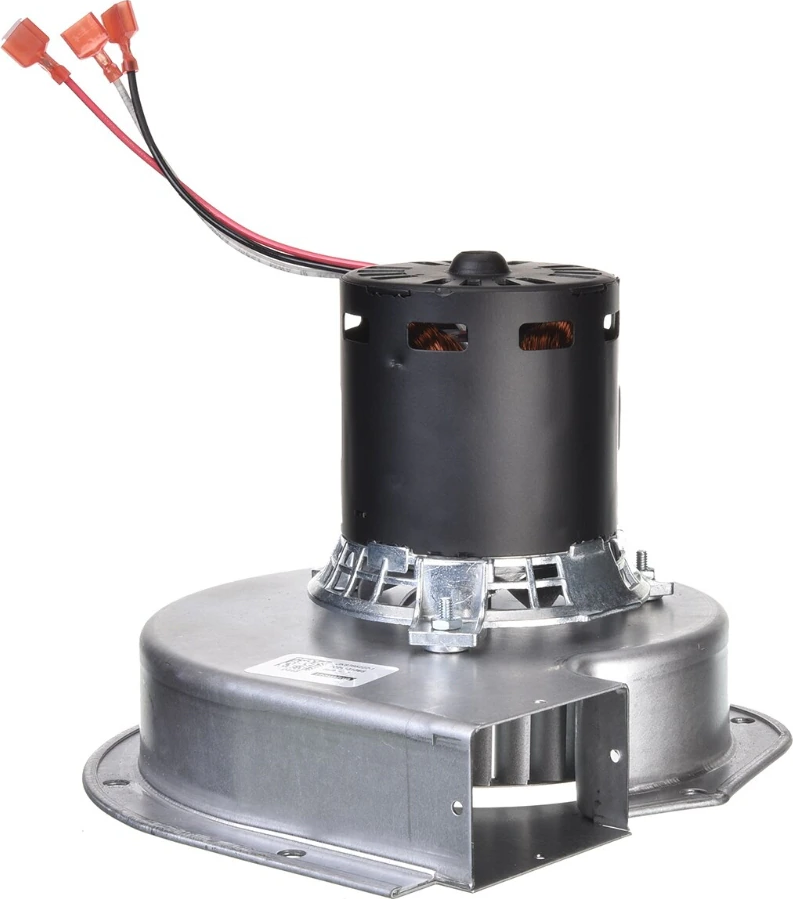

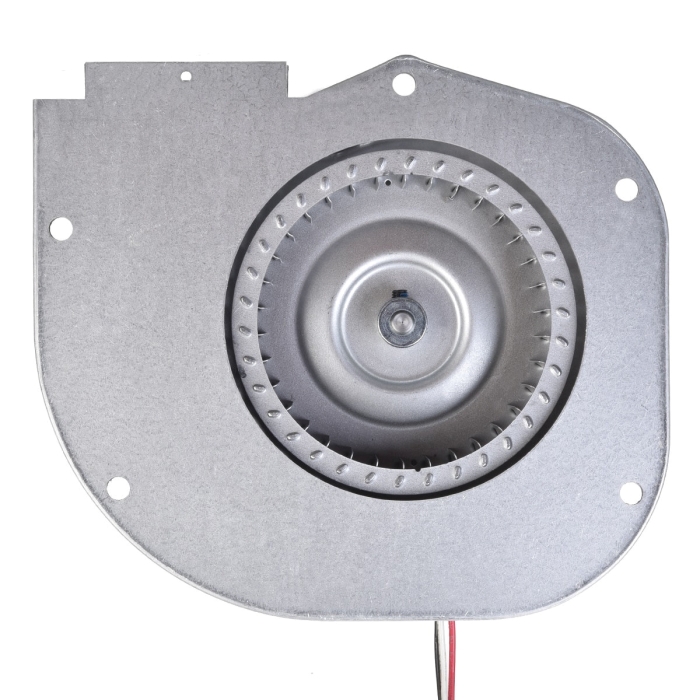

This induced draft blower assembly is designed to provide reliable exhaust venting for a range of compatible Rheem® furnaces. It ensures the safe and efficient removal of combustion byproducts from the heat exchanger to maintain proper system operation.Powered by a 1/25 HP motor, this single-phase unit operates at 3,200 RPM on 208/230V systems. As a critical replacement component, it comes complete with the required gasket to simplify installation and restore furnace functionality.
- Durable Construction: Built with a durable metal housing and reliable ball bearings for a long service life.
- Complete Assembly: Includes the necessary gasket for a secure and complete installation.
- Reliable Motor: Features a single-speed, 1/25 HP shaded pole motor with an open drip-proof enclosure for consistent performance.
- Specific Design: Engineered with a right-side discharge, as viewed from the furnace blower end, to ensure proper system fit.
- System Compatibility: Designed as a replacement part for specific Rheem® furnace models, including RKKA, RKKB, RRKA-A, and RRMA-A.
