| Conduit Size | : | 3/4 in |
| Electrical Connection Type | : | Wire / Pigtail Leads |
| For Use With | : | HVAC Systems |
| Function Type | : | Surge Protective Device |
| Housing Material | : | Cast Aluminum |
| Installation / Mounting Type | : | Panel Mount |
| Maximum Surge Current | : | 100 kA |
| NEMA Enclosure Type | : | Type 4X |
| Number of Poles | : | 3 |
| Package Quantity | : | 1 |
| Phase | : | 1 ph |
| Product Type | : | MOTORS |
| Product Weight | : | 0.55 lbs |
| Shipping Weight | : | 1.295 lbs |
| Short Circuit Current Rating (SCCR) | : | 10 kA |
| Surge Protection Rating | : | 1,020 Joules |
| UL Listed | : | Yes |
| UL Surge Protector Type | : | Type 2 |
| Voltage Protection Rating | : | 900 V |
| Voltage Rating | : | 120~240 V |
| Wire Size | : | 14 AWG |

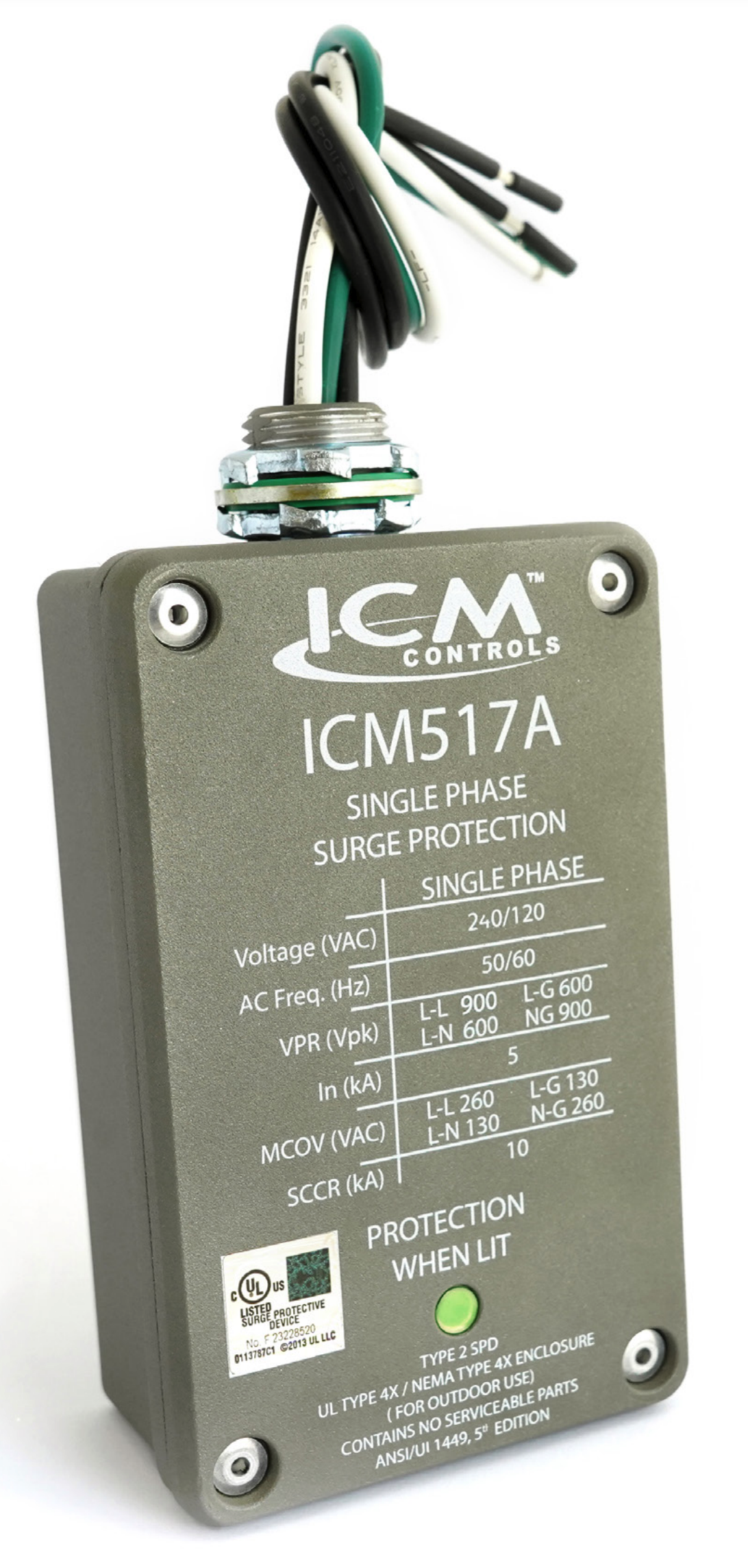

This Type 2 surge protective device is designed for panel mounting at the service entrance or on a branch panel to safeguard sensitive electronic equipment from power surges. It effectively detects and limits transient voltage to prevent damage to connected systems. Built to withstand major surge events, its rugged design ensures reliable performance in demanding applications.
