| Air Flow Direction | : | Vertical |
| BTU Cooling Rating | : | 24,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER2 Range | : | 8.0-12.5 |
| EER2 | : | 8.0~9.0~10.0~11.0~12.0 |
| Energy Star Certified | : | No |
| Height | : | 25 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 20 A |
| Minimum Circuit Ampacity (MCA) | : | 14 A |
| Model Number | : | RA13NY |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 32.38 in |
| Packaged Height | : | 26.5 in |
| Packaged Width | : | 32.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 141 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 13.4-14.5 |
| SEER2 | : | 13.0~14.0 |
| Shipping Weight | : | 148 lbs |
| Sound Level | : | 70 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

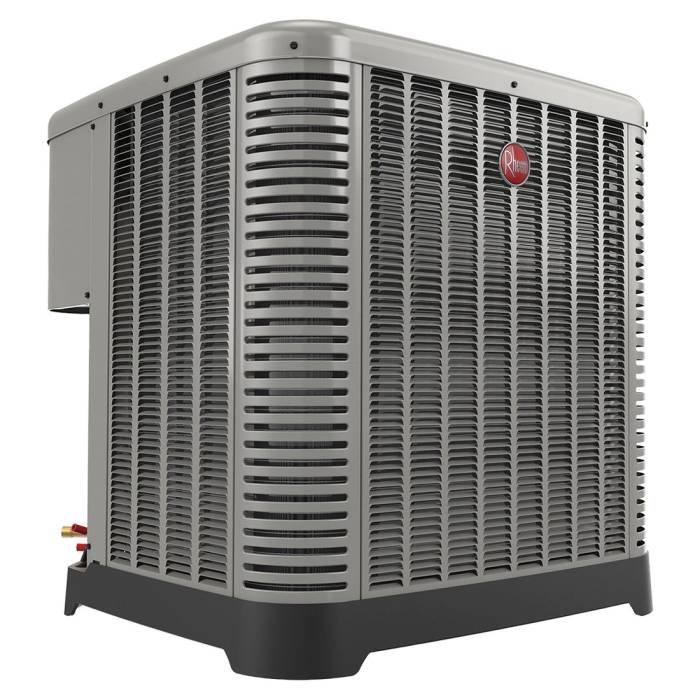

The Rheem® Endeavor Line Classic Series RA13NY is a single-stage air conditioner designed for reliable and efficient residential cooling. It achieves a SEER2 rating of 13.4-14.5 and utilizes the lower GWP R-454B refrigerant to meet modern environmental standards.Engineered with serviceability in mind, this unit incorporates features to simplify installation and maintenance for technicians. Its durable construction ensures long-term performance and resistance to the elements, making it a solid choice for homeowners.
- Enhanced Serviceability: Features PlusOne® Triple Service Access with a 15-inch wide corner space and removable louver panels to make repairs easier and faster.
- Expanded Valve Space: Includes the PlusOne® Expanded Valve Space, providing a minimum of 27 square inches of working area for easier technician access during installation and service.
- Refrigerant Detection System: Equipped with the PlusOne® Refrigerant Detection System™, an integrated A2L sensor and mitigation board that enhances safety and protects the system.
- Efficient Coil Design: Utilizes a 7mm copper condenser coil that requires less refrigerant, contributing to a smaller and lighter unit footprint while enhancing reliability.
- Durable Construction: Built with a dependable scroll compressor, a composite basepan, and rust-resistant screws for long-lasting performance.
